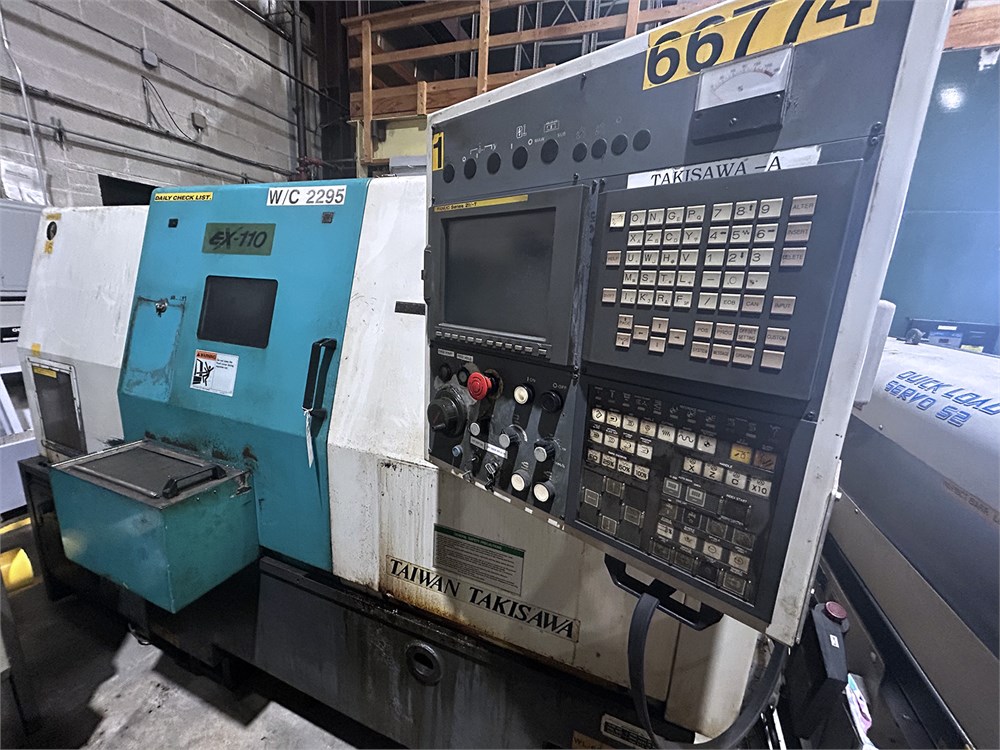

Takisawa EX-110 CNC Lathe (2003)

Takisawa EX-110 CNC Lathe (2003)

Description

X-Axis Travel…………8 1/2"
Z-Axis Travel…………28"
Chuck Size…………10"
Chuck Size – Maximum Swing…………19 1/2"
Turning Diameter – Maximum…………15 3/4"
Turning Length – Maximum…………28"
Bar Capacity…………3"
Tailstock – Quill Diameter…………4 1/4"
Tailstock – Stroke…………5.880"
Tailstock – Quill Center…………MT#5
Tailstock – Body Travel…………22.880"
Spindle Speed – Variable…………50 – 3500 RPM
Spindle Nose…………A2-8
Spinde Power…………25 HP
Spindle Bore…………3.38"
Turret, Bi-Directional…………12 Position
Tool Shank Size – Square…………1"
Tool Shank Size – Round…………2"

Approximate Dimensions…………110"L x 67"W x 71"H

Approximate Weight…………11,000 Lbs.

Equipped With

Parts Catcher,
Chip Conveyor,
LNS Quick Load Servo S2 Bar Feed,
Tailstock,
