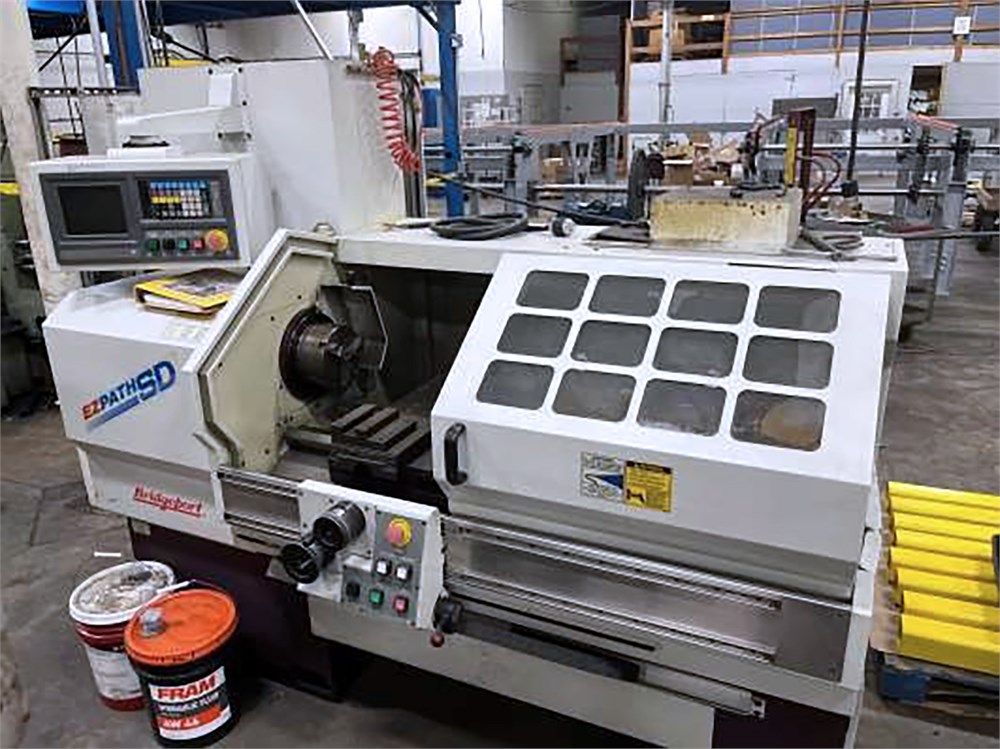

Bridgeport/ Romi EZ-Path SD CNC Lathe (2000)

Bridgeport/ Romi EZ-Path SD CNC Lathe (2000)

Description

Max Swing Over Ways: 17"
Max Swing Over Cross Slide: 8"
Chuck Size: 8"
Max Distance Between Centers: 40"
X-Axis (Cross Travel): 8.6"
Z-Axis (Longitudinal Travel): 40"
X-Axis Rapid Traverse Rate: 295 IPM
Z-Axis Rapid Traverse Rate: 394 IPM
Spindle Nose: A2-5
Spindle Bore: 2.08"
Spindle Speed Range: 25 - 4,000 RPM
Spindle Horsepower: 7-1/2 HP
Tailstock Quill Taper: #4 MT
Tailstock Quill Travel: 4.7"
Approximate Machine Dimensions: 100" X 49" X 77"
Approximate Machine Weight: 5,000 lbs.
