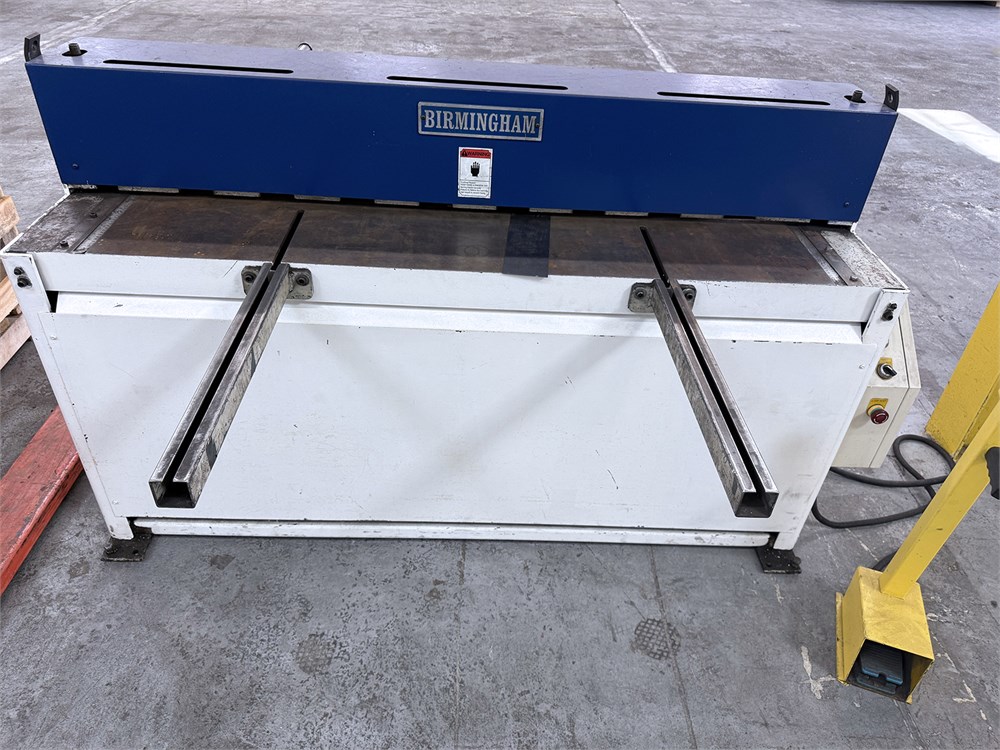

Birmingham H-6014 Hydraulic Shear (2007)

Birmingham H-6014 Hydraulic Shear (2007)

Description

Cutting Length: 60"

Capacity (Mild Steel): 14 guage

Capacity (Stainless Steel): 18 gauge

Stroke Rate: 30 strokes per minute

Rake Angle: Approximately 1 degree 40'

Motor: 5 HP / 3 Ph / 220V

Backgauge: 24" manual rear operated wheel

Front Supports: Two adjustable 24" front support arms

Side Gauges: Two 14" side gauges (left/right) dual scale

Control: Safety removeable foot pedal with full-protection, selectable single/continuous mode

Dims: 84" x 36" x 55"

Weight: 3200 lbs

Equipped With

Front support Arms

Back Gauge

Side Gauges

Foot Pedal
