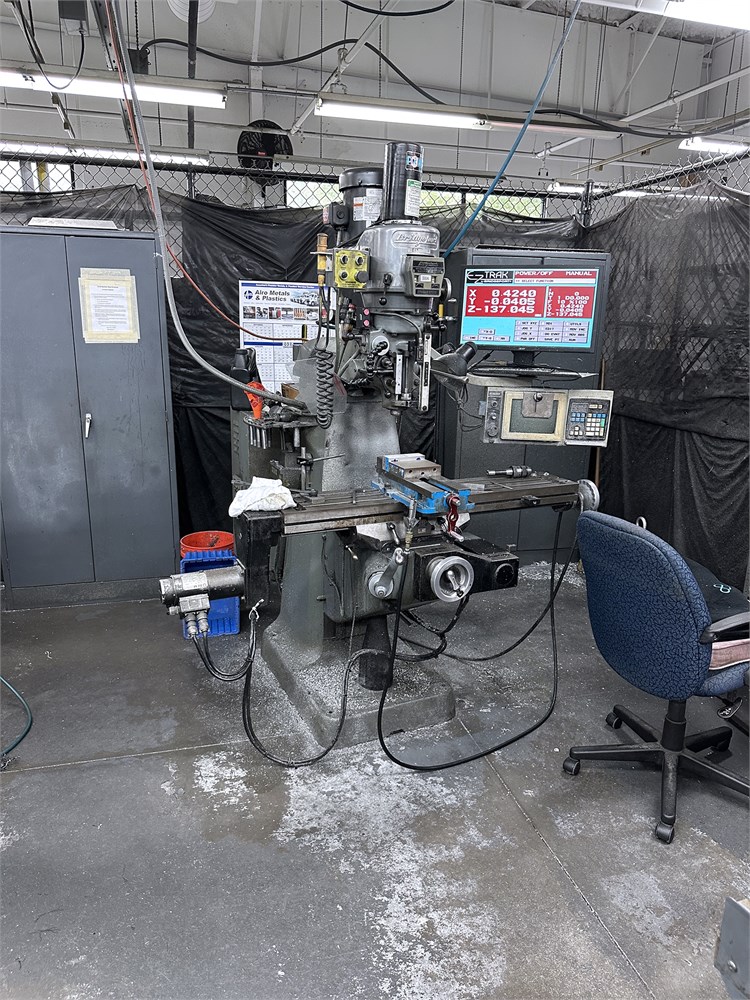

Bridgeport Series I EZ-Trak Manual Milling Machine (1994)

Description

Table Travel (X-axis): 30″
Saddle Travel (Y-axis): 12″
Spindle Travel (Z-axis): 5″
Table Size: 48″ x 9″
T-Slots: 3 on 2.5″ centers
T-Slot Size: .00625″
Height Above Floor (max): 47.4″
Maximum Vertical Load Uniform Distribution: 300 lbs

POSITIONING:
Auto (X,Y): 100 ipm
Manual (X,Y): 100 ipm
Feedrate Range (X,Y): 0.1-100 ipm
Minimum Increment: 0.0001 in.

SPINDLE:
A.C. Spindle Motor Rating: 2 HP
Power Rating (Duty Cycle): 3 HP

POWER:
Input Power: 208/230/460 Volts
3 Phase 50/60 Cycles
Power Capacity: 4kVa

SPACE AND WEIGHT:
Floor Space: 98″ x 64″ (Door Open: 98″ x 87″)
Machine Height: 82″
Working Surface: 48″ x 9″
Approx Weight: 2,200 lbs

MILLING HEAD SPECIFICATIONS:
Model: 2J
Power: 2 HP
Motor RPM: 1,800 RPM
Speed Ranges- RPM: Low (60-500), High (500-4200)
Quill Travel: 5″
Quill Diameter: 3.375″
Spindle Tapers: R-8 #30 Q.C.
Spindle Diameter: 1.875″
Drilling Capacity (Manual): 0.87″
Drilling Capacity (Power): 0.37″
Boring Capacity: 6″
Milling Capacity: 2 cu. in./min.
Spindle to Column: 6″ – 23″
