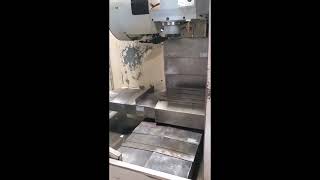

2005 Twinhorn VA-500 Vertical Machining Center

× Bidding has ended on this item.
Ended

16 Position ATC, 8,000 RPM Spindle, AC Spindle Drive & Controls

Prev Lot
  Lot # 10
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
  • Location
    WI
  • Logistics
    THERE WILL BE A LOADING COST OF $750.00 AND WILL BE AUTOMATICALLY INCLUDED ON THE SALES INVOICE.

  • Lot # 10
  • System ID # 552128
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 552129
Description

X - Axis: 19.69"
Y - Axis: 15.75"
Z - Axis: 17.72"
Table Size: 15.75" x 27.56"
Maximum Work Piece: 660 Lbs.
Automatic Tool Changer Positions: 16
Spindle Taper: BT 40
Spindle Speeds: 60-8,000 RPM
Feed Rate: .004-.020
Motor:10 hp
Voltage: 220V 3-Phase
Dimensions; 99" x 86" x 106"h
Weight: 11,000 lbs


Equipped With:

Meldas 60 Series Controls
16 Position ATC
AC Spindle Drive and Controls
Coolant
Newly Rebuilt Way Covers
All Books & Manuals
