44 Carlton Natco 4’ x 15”3A Radial Arm Drill Press
Prev Lot
Next Lot
Active TIMED AUCTION
Prev Lot
LOT  44
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
LOT 44

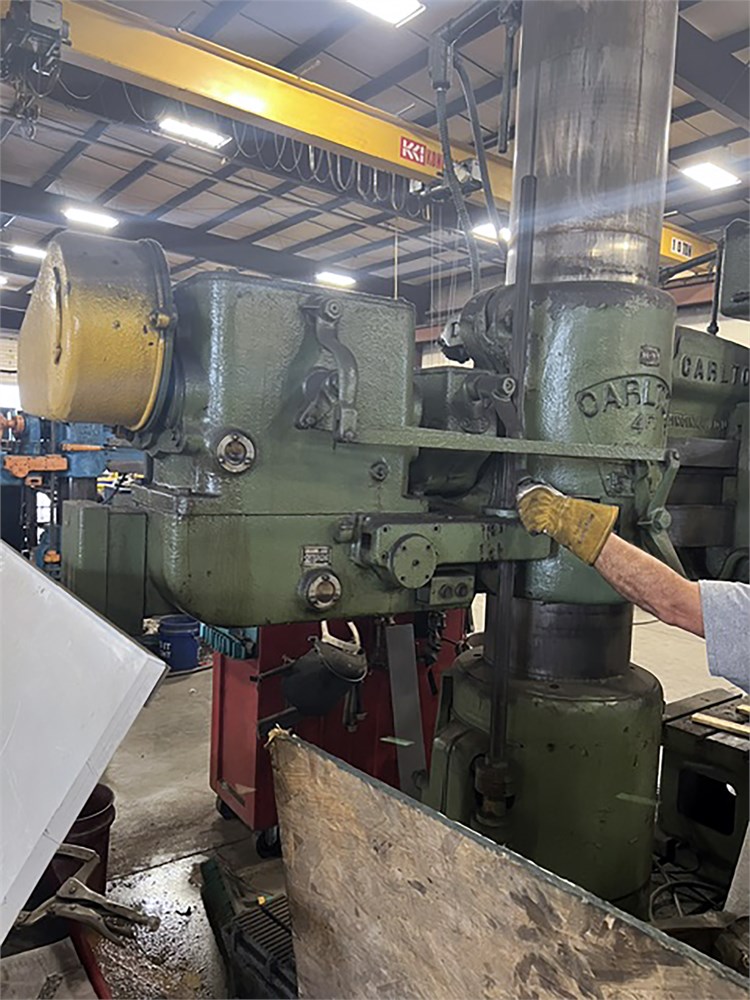

Carlton Natco 4’ x 15”3A Radial Arm Drill Press

Current Price
$100.00
No Reserve ? $100.00
Remaining Time 7 Days, 17:30:08
Your Maximum Bid: $0.00
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Machine Details
Location: Ohio
Lot #: 44
End Date: Wednesday, September 30, 2026 2:35 PM
Start Date: Monday, August 31, 2026 11:00 AM
Item #: 5472545
Machine Description

Carlton Natco 4’ x 15”3A Radial Arm Drill Press



Description

Arm Length: 4 ft (48")
Column Diameter: 15"
Horizontal Head Travel on Arm: ~36"
Vertical Arm Travel on Column: ~31"
Spindle Radius (Min / Max): ~26" / ~52"
Spindle Nose to Base (Min / Max): ~10" / ~60"
Spindle Taper: #5 Morse Taper (#5 MT)
Spindle Travel / Quill Stroke: 18"
Spindle Speeds: 36 speeds, ranging from 15 to 1,500 RPM
Spindle Feeds: 18 feed rates, from .004 to .125 IPR
Tapping Leads: 4 choices (8, 11-1/2, 14, 18 TPI)
Main Drive Motor: 15 HP to 20 HP (varies by specific configuration)
Electrical: 230V / 460V, 3-Phase, 60 Hz
Clamping: Power clamping to column, arm, and head
Base Size: ~43" W × 75.5" L
Overall Weight: Approximately 15,500 – 16,500 lbs
Elevation & Traverse: Power arm elevation and power head traverse
