LOT 25

Keyence IM-7010 Measuring Machine (2019)

Current Price
$100.00
No Reserve ? $100.00
Remaining Time 14 Days, 05:47:42
Your Maximum Bid: $0.00
105 Watching
Add to Watch List
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Machine Details
Location: Mexico
Lot #: 25
End Date: Wednesday, September 30, 2026 1:00 PM
Start Date: Monday, August 31, 2026 11:00 AM
Item #: 5375213
Machine Description

Keyence IM-7010 Measuring Machine (2019)



Description

Type

Head
Model incorporating backlighting/fixed ring-illumination unit

Image sensor

1” 6.6 mega pixel monochrome CMOS

Display

10. 4” LCD monitor (XGA: 1024 × 768)

Receiver lens

Double telecentric lens

measurement

Field of view

Wide-field measurement mode : 200 mm x 200 mm 7.87 × 7.87" (4x R50)
High-precision measurement mode : 125 × 125 mm 4.92 × 4.92"

Minimum display unit

0.1 µm

Repetition accuracy

W/o stage movement

Wide-field measurement mode: ±1 µm
High-precision measurement mode: ±0.5 µm

With stage movement

Wide-field measurement mode: ±2 µm
High-precision measurement mode: ±1.5 µm

Measurement accuracy (±2σ)

W/o binding

Wide-field measurement mode: ±5 µm *1
High-precision measurement mode: ±2 µm*2

With binding

Wide-field measurement mode: ± (7+0.02 L) µm*3
High-precision measurement mode: ± (4+0.02L) µm*4

External remote input

Non-voltage input (with and without contact)

External output

OK/NG/FAIL/MEAS

PhotoMos output
Rated load 24 VDC 0.5 A
ON resistance 50 mΩ or lower

Interface

LAN

RJ-45 (10BASE-T/100BASE-TX/1000BASE-T)

USB 3.1

4 ports (rear: 4)

USB 2.0 series A

2 ports (front: 2)

Record

Hard disk drive

500 GB

Illumination system

Transparent

Telecentric transparent illumination

Ring

Four division ring illumination

XY stage

Moving range

100 × 100 mm 3.94 × 3.94" (electric)

Withstand load

5 kg

Z stage

Moving range

75 mm 2.95" (electric)

Power supply

Power voltage

100 to 240 VAC 50/60 Hz

Power consumption

430 VA or lower

Environmental resistance

Pollution degree

2

Overvoltage category

II

Ambient temperature

+10 to +35 °C 50 to 95 °F

Relative humidity

20 to 80 % RH (No condensation)

Weight

Approx. 30 kg

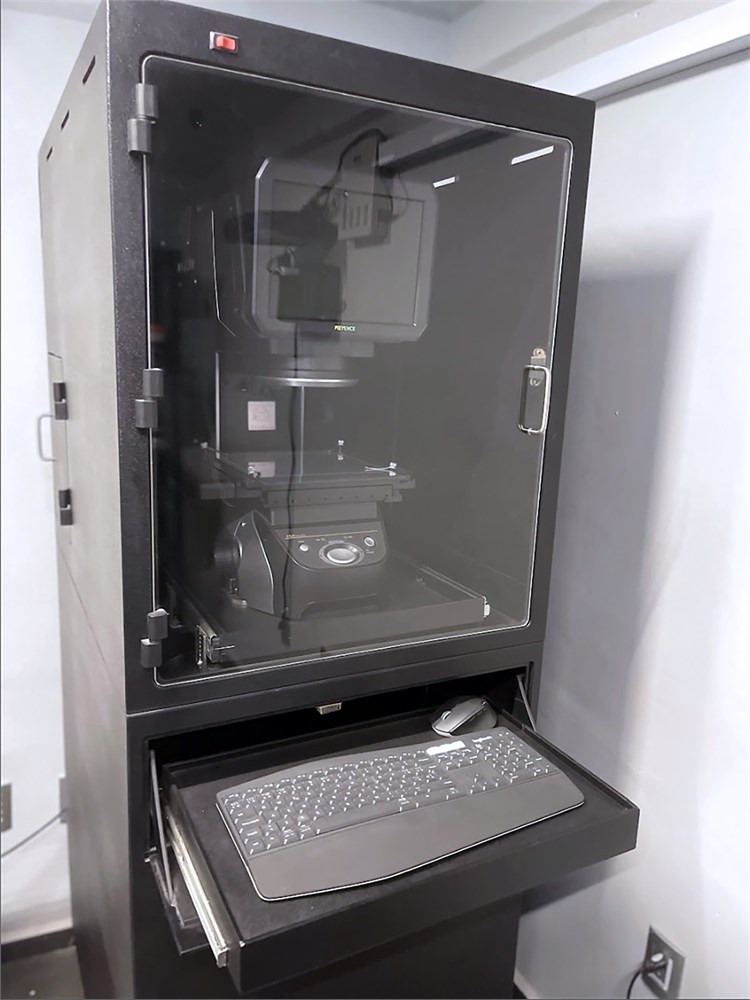

Equipped With

Optional Dust Case
