TIMED AUCTION
8/26 Bi-Monthly Open CNC & Fab Auction
schedule Auction Ends: 8/26/2026 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  58
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Washington
Logistics: BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Lot #: 58
End Date: Wednesday, August 26, 2026 1:51 PM
Start Date: Tuesday, July 28, 2026 11:00 AM
Item #: 5301088
Machine Description

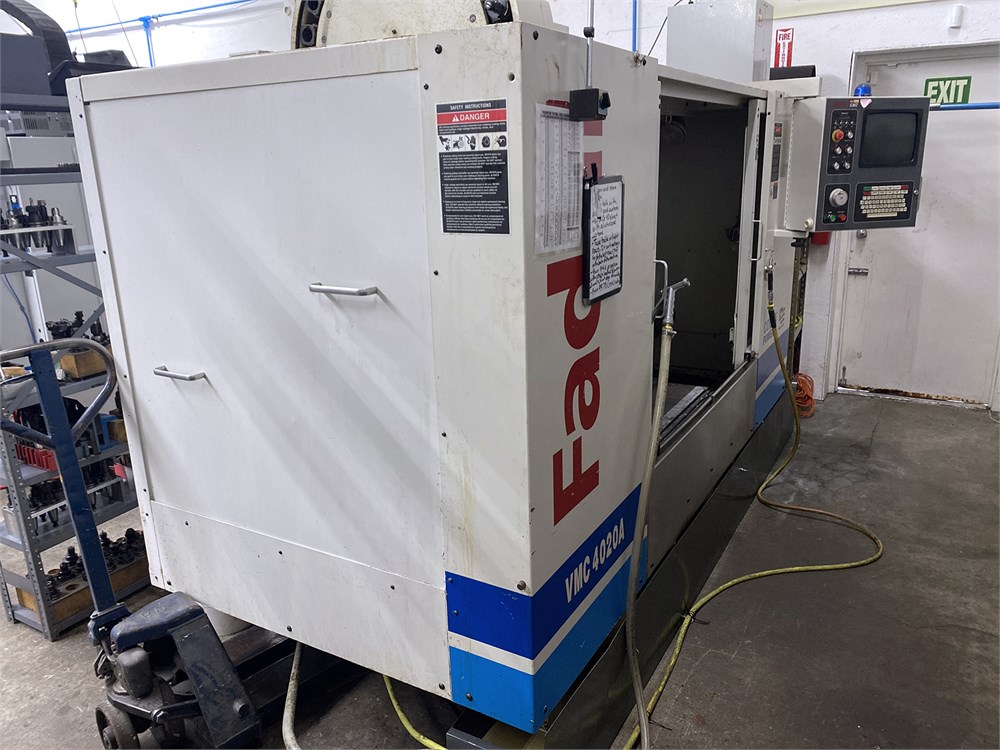

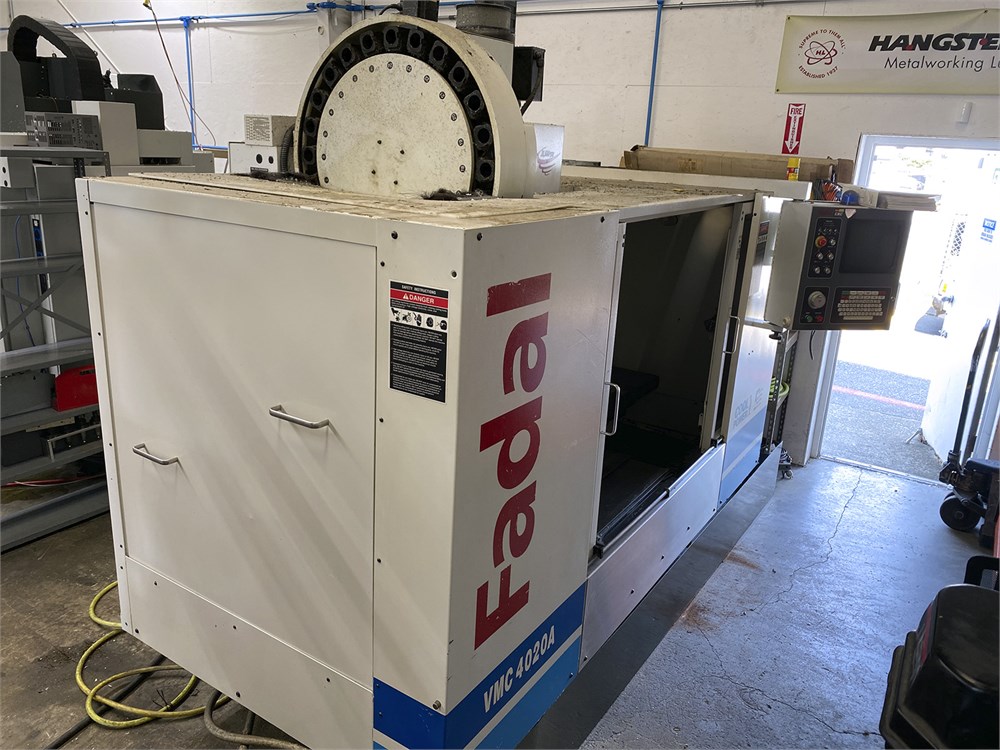

Fadal 4020A HT VMC (2002)



Description

X-Axis Travel: 40 in
Y-Axis Travel: 20 in
Z-Axis Travel: 20 in
Spindle Nose to Table: 24 in
Spindle Center to Column Ways: 20 in
Table Size: 48 in × 20 in
Max Weight on Table: 3,500 lbs
T-Slots: 5
Spindle Taper: CAT-40
Spindle Speed: 10,000 RPM
Max Spindle Torque: 220 ft-lbs
Spindle Motor Power: 22 HP
Positioning Accuracy: ±0.0002 in
Repeatability: ±0.0001 in
Electrical Power: 230 VAC, 3-Phase



Equipped With

21-position umbrella tool changer,
Flood Coolant System,
10k RPM Spindle
