Smart VX 350-5AX 2019 (2) 5-Axis Plus Machining Center
×
Bidding has ended on this item.
Ended
LIVE WEBCAST

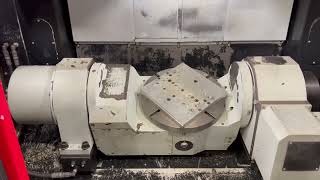

Trunnion Table w/ 4th & 5th Axis, Renishaw OM Kit (Prepped Only), CAT40 Big Plus
- Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Wichita. KS
Logistics
THERE WILL BE A LOADING COST OF $950.00 AND WILL BE AUTOMATICALLY INCLUDED ON THE SALES INVOICE. ALL EQUIPMENT MUST BE REMOVED BY END OF DAY 6/29/22 - NO EXCEPTIONS.
- Lot # 7
- System ID # 526911
- Item # 526912
Description
Control: Fanuc 0i-MF Control
X-Axis Travel: 27.55"
Y-axis Travel: 17.71"
Z-axis travel: 16.53"
A-axis travel: + 30/-120 degrees
C-axis Travel: 360 degrees
Table size: 13.77" (diameter)
Spindle Taper: CAT 40 (Big Plus)
Spindle speed: 12,000 RPM
Spindle HP: 15HP
ATC Capacity: 32
spindle to table top: 22.44"
rapid traverse rate: 1,890 IPM
Equipped With:
Built-in tilting trunnion with 4th and 5th axis tilt
Coolant Thru Spindle (300 PSI)
Fully enclosed splash guards with top and ATC cover
Renishaw OMI-2T (Prep only)
Oil skimmer
Chip Conveyor
Spindle Chiller
Splash Gun
Remote MPG
*MACHINE HAS ONLY CUT ALUMINUM*
