TIMED AUCTION
8/12 Bi-Monthly Open CNC & Fab Auction
schedule Auction Ends: 8/12/2026 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  62
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Texas
Logistics: BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Lot #: 62
End Date: Wednesday, August 12, 2026 2:03 PM
Start Date: Friday, July 10, 2026 11:00 AM
Item #: 5228750
Machine Description

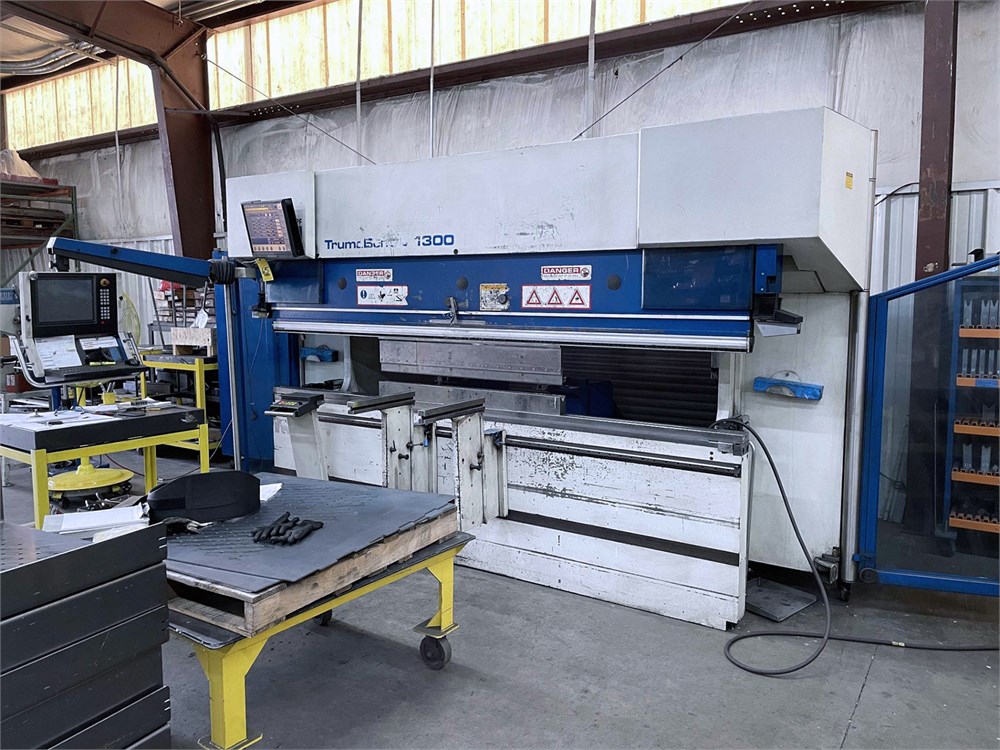

Trumpf TrumaBend V1300 CNC Press Brake (2005)



Description

Capacity: 130 Metric Tons (144 US)

Stroke: 8.64" max. (215 mm)

Overall Bending Length 127.1 in (3,230 mm)

Throat Depth 16.5 in (420 mm)

Open Height* Approximately 20.5 in (520 mm) depending on tooling configuration

Bed Width 4.72 in (120 mm)

Main Motor 15 kW (20 HP)

Rapid Approach Speed 220 mm/sec (8.7 in/sec)

Bending Speed 10 mm/sec (0.39 in/sec)

Return Speed 220 mm/sec (8.7 in/sec)



Equipped With

Back Gauge: 6-axis

Crowning: CNC Hydraulic Crowning

Ram Clamping: TRUMPF Sectional Hydraulic Tool Clamping

Approximate Weight: 22,440 lb (10,180 kg)

Overall Dimensions: 160 × 69 × 94 in (4,065 × 1,753 × 2,388 mm)

2 precision adjust manual front supports and 2nd programmable foot switch

BendGuard Laser Safety Device

3D Color Graphics Visual and Programming Control with Networking Card
