Machine Details
Location: Illinois
Logistics: LOADING FEE OF $500.00 WILL BE ADDED TO WINNING INVOICE
Lot #: 39
End Date: Wednesday, July 15, 2026 2:10 PM
Start Date: Thursday, May 28, 2026 11:00 AM
Item #: 5157529
Machine Description

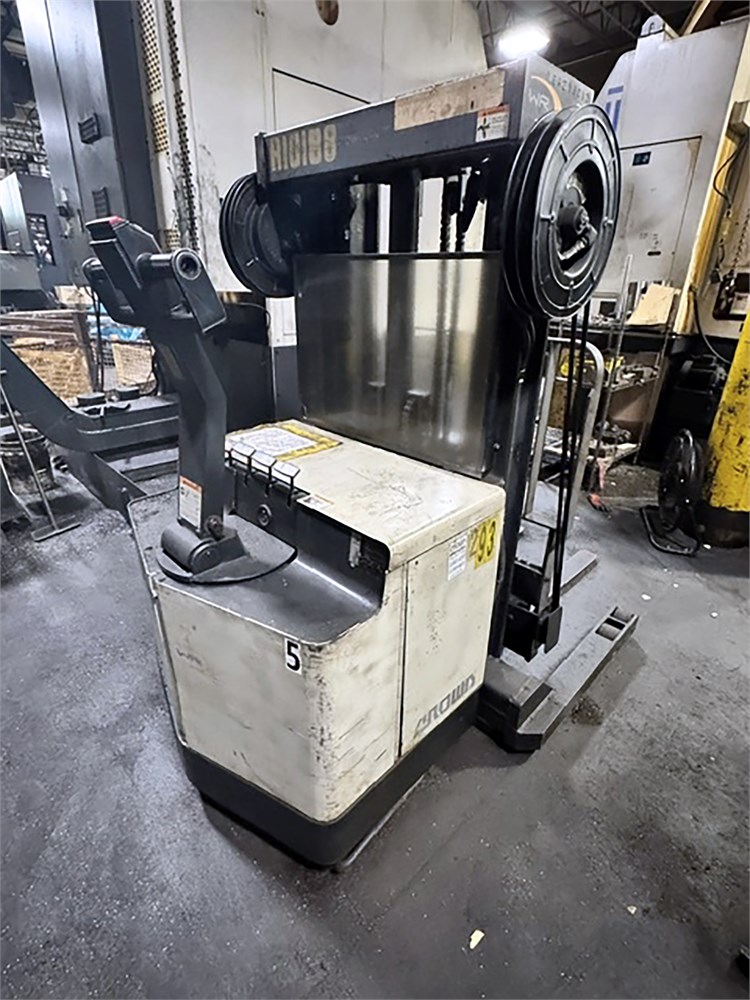

Crown 30WRTT Walkie Reach Truck/Stacker (2006)



Description AARON

Designation: TT1524213.252-PDM
Series: WR Series

Rated Capacity: 3,000 lbs (1,360 kg)
Load Center: 24 in (600 mm)
Capacity at Mast Vertical: 3,000 lbs
Reach Type: Pantograph Reach
Fork Length: 42 in (1,065 mm)
Load Wheel Tread Width: 46 in (1,170 mm)

Voltage: 24 Volt DC
Battery Type: EO
Maximum Battery Capacity: 600 Ah
Charger Included: Yes (24V charger in photos)

Fork Length: 42 in
Overall Width: ~46 in
Turning Radius: ~65-75 in
Travel Speed: 4-5 mph
Lift Speed (loaded): ~40-60 ft/min
Reach Extension: ~20-24 in

Lift Height: approximately 188-210 inches (15.5-17.5 ft)
Collapsed Height: approximately 85-95 inches



Equipped With

Battery Charger,
3-stage full free-lift mast with pantograph reach
