Machine Details
Location: Arizona
Logistics: LOADING FEE OF $500.00 WILL BE ADDED TO WINNING INVOICE
Lot #: 23
End Date: Wednesday, June 24, 2026 12:50 PM
Start Date: Thursday, May 28, 2026 11:00 AM
Item #: 5067971
Machine Description

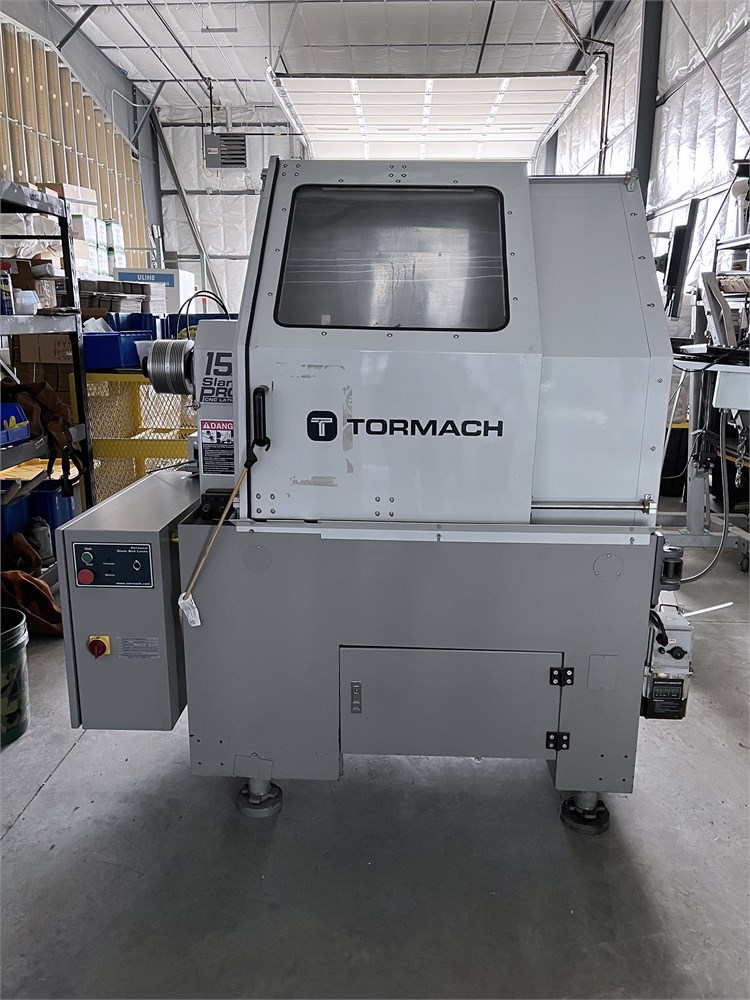

Tormach 15L Slant Pro CNC Lathe (2020)



Description

Recommended Footprint: 72 in × 42 in. (1829 mm x 1067 mm)

Typical System Weight: 1,800 lbs. (816 kg)

Swing Over Bed Diameter: 15 in. (381 mm)

X-Axis Travel: 10 in. (254 mm)

Z-Axis Travel: 12 (305 mm)

Recommended Chuck Size: 6 in. (152 mm)

Coolant Tank Size: 10 gallon

Motion

Max Feed Rate X/Z: 60 IPM (1.52 m/min)

Spindle

Spindle Power: 3 hp (2.24 kW)

Spindle Speed:

Low: 180 to 2,500 RPM

High: 250 to 3,500 RPM

Spindle Taper: 5C (with removable insert)

Spindle Bore Diameter: 1.53 in. (with 5C insert removed

Spindle Nose: D1-4 Camlock Mount

Control

Standard Feature: Rigid Tapping

Standard Feature: Single Point Threading

Power

Power Required (Primary): Single-Phase, 230 Vac 50/60Hz, 20A Breaker

Power Required (Secondary): Single-Phase, 115 Vac 50/60Hz, 20A Breaker

Supplied with NEMA L6-20P plug; requires NEMA L6-20R receptacle



Equipped With

gang package with the automatic closer and pull arm
