Machine Details
Location: Washington
Logistics: BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Lot #: 20
End Date: Wednesday, June 24, 2026 12:35 PM
Start Date: Thursday, May 28, 2026 11:00 AM
Item #: 5066742
Machine Description

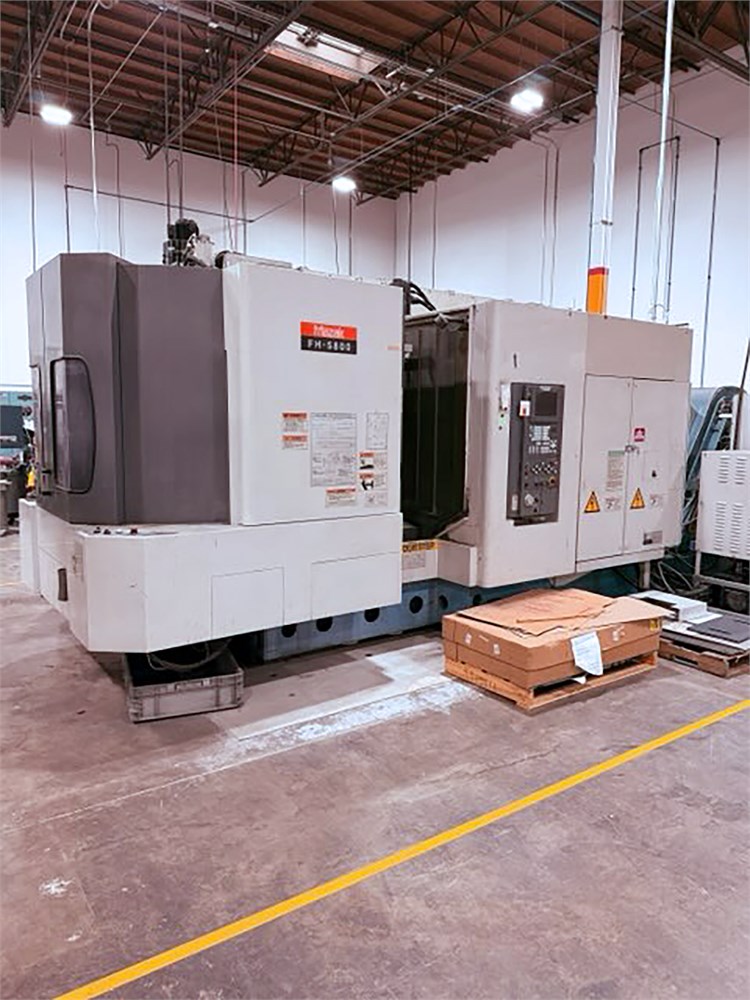

Mazak FH-5800 Horizontal Machining Center (1999)



Description

Pallet Size (x2): 19.68" x 19.68" (500 mm x 500 mm)
X-Axis Travel: 27.95" (710 mm)
Y-Axis Travel: 24.02" (610 mm)
Z-Axis Travel: 25.98" (660 mm)
B-Axis Indexing: 0.001° (Full 4th Axis) or 1°
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP (22.4 kW)
Spindle Taper: CAT 40
Tool Changer: 40 tools (only 9 are currently functioning)
Rapid Traverse Rate: 1,968 IPM (50 m/min)
Max Table Load: 1,100 lbs to 2,200 lbs (500 kg to 1,000 kg)
Machine Weight: 27,400 lbs



Equipped With

Mazak TOOL-HIVE sub-panel,
2 Pallets

*The add-on tool changer needs a control board that the owner been unable to find*
