Machine Details
Location: New Hampshire
Logistics: BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Lot #: 10
End Date: Wednesday, June 24, 2026 12:17 PM
Start Date: Thursday, May 28, 2026 11:00 AM
Item #: 5054482
Machine Description

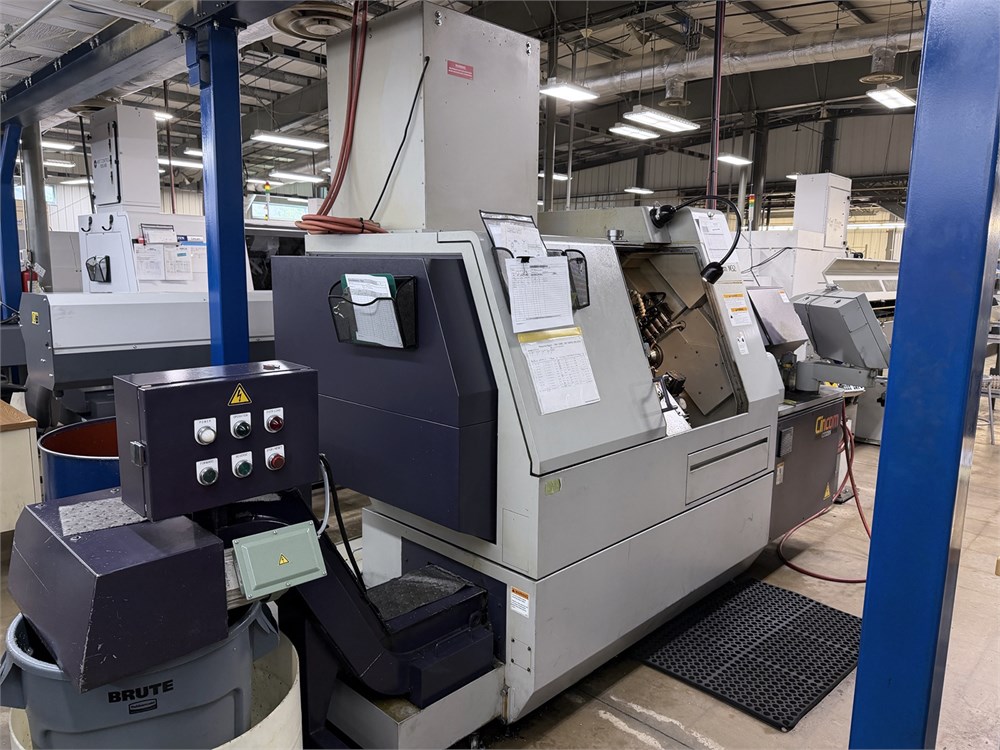

Citizen M32 III Swiss Lathe (2004)



Description

ar size diameter 32mm
Max. turning length 320mm
Max. diam. Front drilling 12mm
Max. diam. Front tapping M10-M8
Max. diam. posterior drilling 10mm
Max. diam. Posterior tapping M8
Max. main spindle speed 200-8000 rpm
Max. sub spindle speed 200-7000 rpm
Position Axis C main spindle Cs 1°/1000°
Position Axis C sub spindle Cs 1°/1000°
No. Turret position 10
No. Of tools 22+α
No. Facing tools 5
No. Live tools 4
No. Fix tools 10+α
No. Tools of sub spindle 3
Dimension tools pos 1 16x16x130mm
Dimension tools pos 2 16x16x90mm
fix tool holder Diam. 25.4mm
Main spindle motor 3.7/5.5 KW
Sub spindle motor 1.5/2.2 KW
X1 axis feed motor 0.4 KW
Y1,Z1 axis feed motor 0.75 KW
X2 axis feed motor 1.0 KW
Y2,Z2 axis feed motor 0.75 KW
X3,Z3 axis feed motor 0.75 KW
Turret motor 1.0 KW
No. 11Axes X1,Y1,Z1,X2,Y2,Z
2,X3,Z3,T1,C1,C2



Equipped With

FMB Turbo 542 Barloader,
High Pressure Coolant,
Mist Collector,
(2) Live holders
