LOT 1

Trak DPM Bed Mill

Current Price
$100.00
No Reserve ? $100.00
Remaining Time 29 Days, 18:19:45
Your Maximum Bid Is $0.00
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Machine Details
Location: Illinois
Lot #: 1
End Date: Wednesday, June 10, 2026 4:00 PM Central Standard Time
Start Date: Thursday, May 7, 2026 4:00 PM Central Standard Time
Item #: 5012589
Machine Description

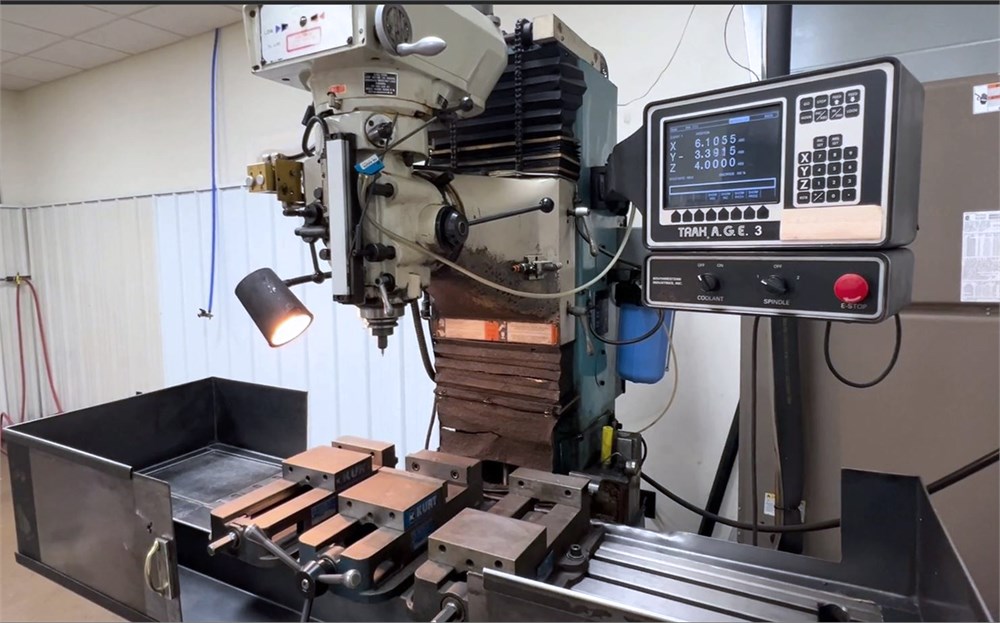

Trak DPM Bed Mill (1999)



Description

Make: Trak
Model: DPM
T-Slots: 63mm x 2.5"

X Travel: 31"
Y Travel: 17"
Z Travel: 23.5"

Spindle Head
Quill Diameter: 100mm
Spindle Taper: #40 NST, NMTB
Speed Range: 70-4200 RPM
Spindle Nose to Table (max part height): 0-25"
Spindle center to column face: 17.3"
Quill Feeds per revolution of Spindle: 0.002, 0.004, 0.006 in/revolution
Head Swiveling (right to left): 90 degrees

Spindle Motor
Power: 3 Hp
Voltage: 220V or 440V
Phase/Cycle: 3 Phase/60 Hz
Current: 8.6/4.3 amp
Max weight of workpiece: 1320 lbs

Maximum Machining Capacities
Drilling Mild Steel: 1.5" diameter
Tapping: 1.25"
Milling: 3 cubic in/minute
Boring: 4.75"

Approx shipping weight 4500 lbs
Pallet size 6' x 6'



Equipped With

DRO,
Box Tooling,
Table Vices
