Machine Details
Location: New Jersey
Logistics: LOADING FEE OF $250.00 WILL BE ADDED TO WINNING INVOICE
Lot #: 34
Item #: 4994070
Machine Description

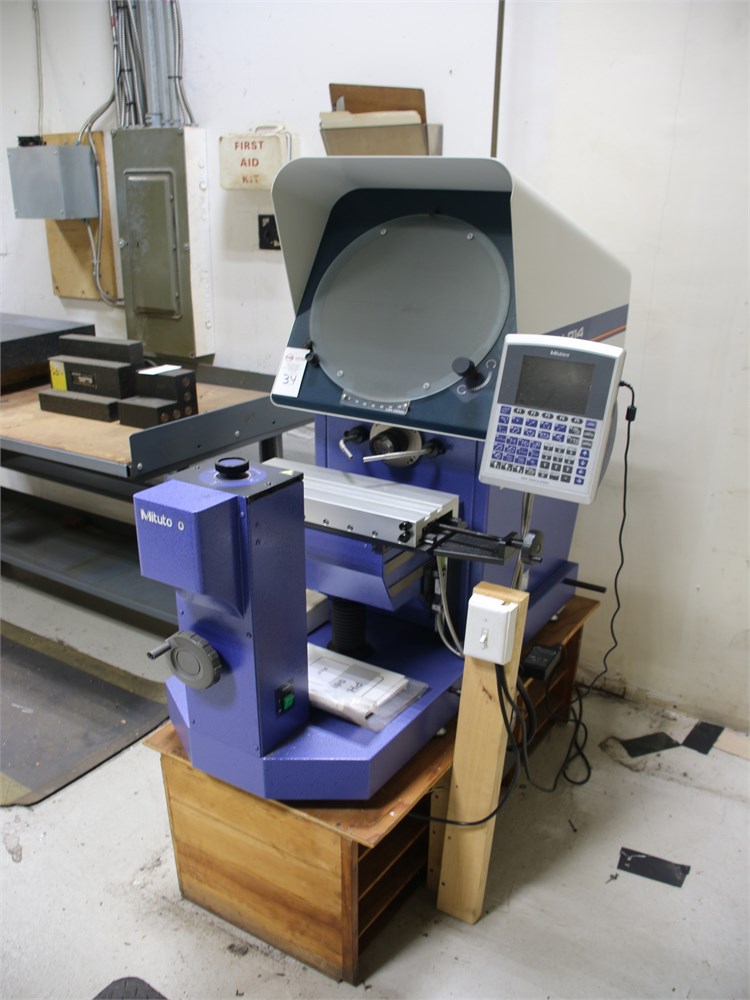

Mitutoyo PH-A14 14" Optical Comparator, With QM-Data200 Digital Display S/N: 128361807



Projection Screen: 14" (356mm)
Screen Rotation: ±360° with fine feed and clamp; resolution of 2' (vernier reading).
Projected Image: Inverted.
Workstage Travel: 8" x 4" (X x Y axis) with a 2" (50.8mm) focusing (Z-axis) travel.
Workstage Size: 16" x 6" (407 x 153mm).
Resolution: 0.00005" / 0.001mm via built-in linear glass scales.
Maximum Workpiece Load: 100 lbs (45kg).
Equipped With
QM-Data200 Digital Display
10X Mesurement Lens
 S/N: 128361807
