TIMED AUCTION
5/13 Bi-Monthly Open CNC & Fab Auction
schedule Auction Ends: 5/13/2026 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  34
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: California
Logistics: BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Lot #: 34
End Date: Wednesday, May 13, 2026 6:54 PM Central Standard Time
Start Date: Tuesday, April 21, 2026 4:00 PM Central Standard Time
Item #: 4956096
Machine Description

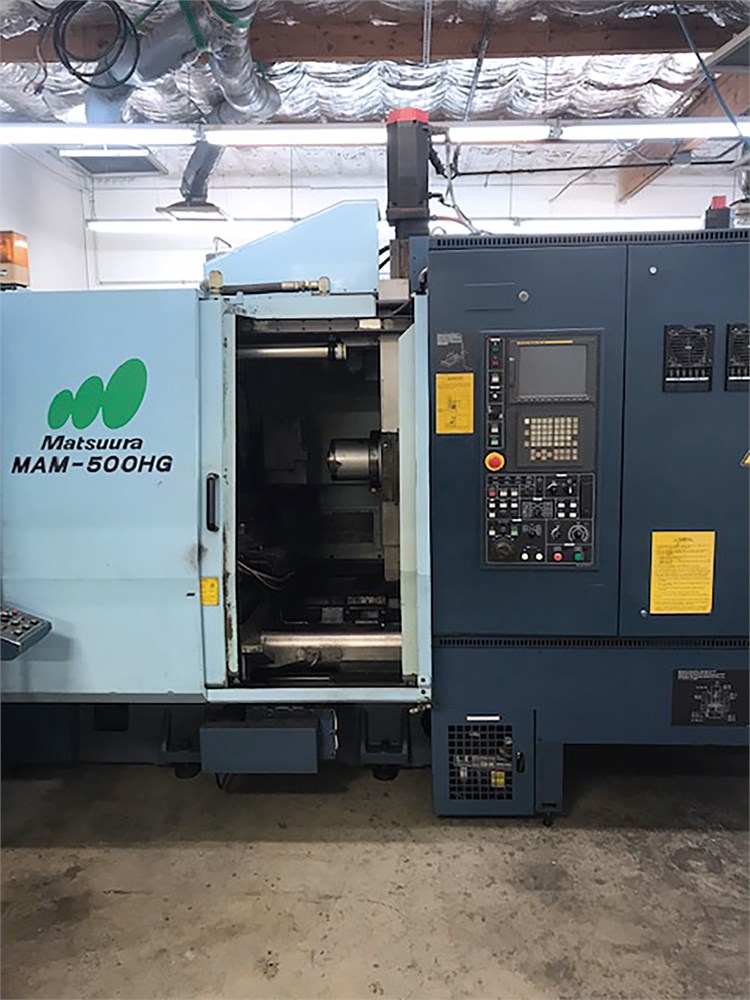

Matsuura MAM-500HG PC-11 Horizontal Machining Center (2001)



Description

X-Axis Travel: 19.68"
Y-Axis Travel: 18.50"
Z-Axis Travel: 17.72"
Max Spindle RPM: 15,000
Taper: BT-40
Power: 20 HP
Pallet size: 11.8" x 11.8"
Pallet Stations: 11
Max Pallet Load: 661.5 LBS
Pallet Change Time: 6.0 sec
ATC: 120
Rapid Traverse (X/Y/Z): 945 IPM
Max Machining Feed: 393 IPM
Approx. Dimensions: 188"L x 91"W x 110"H
Weight: ~15,000 LBS



Equipped With

Fanuc 16i-M Control,
Chip Conveyor,
Coolant Tank,
