LOT 29

Atlas Copco PSA Nitrogen Generator

Current Price
$100.00
No Reserve ? $100.00
Remaining Time 13 Days, 17:04:09
Your Maximum Bid Is $0.00
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Machine Details
Location: Kentucky
Lot #: 29
End Date: Wednesday, April 29, 2026 6:20 PM Central Standard Time
Start Date: Tuesday, March 31, 2026 4:00 PM Central Standard Time
Item #: 4922376
Machine Description

Atlas Copco PSA Nitrogen Generator



Description

Final purity: 99.999%
Final pressure: 500 PSIG
Flow rate: 34.8 SCFM @ 500 PSIG
Final Nitrogen Storage Capacity: 400 gallons @ 600 PSIG
Compressor capacity: Up to 524 CFM
Dry air dew point: 39°F
Oil content after filtration: ≤0.0009 ppm
System Type: PSA Nitrogen Generation + High Pressure Booster



Equipped With

Complete Atlas Copco PSA nitrogen generation system with integrated air, drying, filtration, storage, and high‑pressure boosting

Atlas Copco GA75VSD‑175WP Variable Speed Rotary Screw Compressor
Horsepower: 100 HP / 75 kW
Max pressure: 181 PSIG
Capacity: up to 524 CFM (ISO1217)
Cooling Type: Water Cooled
Controller: Elektronikon Mk5 controller

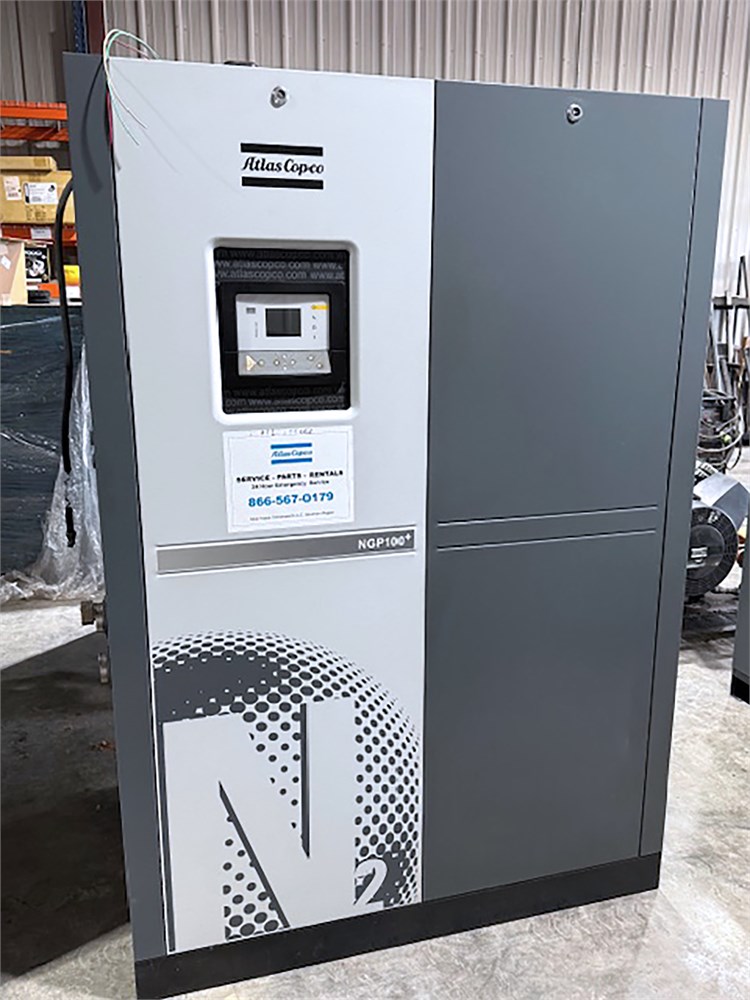

Atlas Copco NGP100+ PSA Nitrogen Generators (2 Generators)
Purity: 99.999%
Technology: Dual‑tower PSA (Carbon Molecular Sieve)
Combined Nitrogen Production: Up to 140 SCFM at PSA discharge pressure
Final System Output: 34.8 SCFM @ 500 PSIG
PSA Discharge Pressure: Up to 120 PSIG

Atlas Copco FX14 Refrigerated Dryer (460V/3/60)
Rated flow: 424 CFM
Max inlet pressure: 189 PSIG
Dew point: 39°F
Refrigerant: R404a

Atlas Copco LB15‑40BM High‑Pressure Booster Compressor
Type: Industrial two‑stage piston booster
Final Discharge Pressure: Raises PSA nitrogen to 500+ PSIG

ASME 400 Gallon High Pressure N2 Storage Tank
Rated 600 PSIG
Dimensions: 36" × 93"
Weight: ~3,100 lb

LV500‑200 — ASME 500 Gallon Vertical Tanks (5 Tanks)
Rated 200 PSIG
Dimensions: 36" × 128"
Weight: 1,180 lb each
Includes safety relief valve & gauge kit
Previously used as: Receiver Tanks (x2), Buffer Tanks (x2), Booster Inlet Tank

Filtration Train -
Atlas Copco UD180+ Coalescing Filter
Connection Size: 1.5" NPT
Oil Removal: Down to 0.0009 ppm
Rated Flow: 381 CFM

Atlas Copco QDT185 Activated Carbon Tower
Oil Vapor Removal: Down to 0.003 ppm
Connection Size: 1.5" NPT
Designed Inlet Temperature: 95°F

Atlas Copco DDp170+ Particulate Filter
Connection Size: 1.5" NPT
High‑efficiency particulate removal (dust, solids, fine particulates)

Main Panel Breaker
Safety Disconnects
System Piping and Connections
