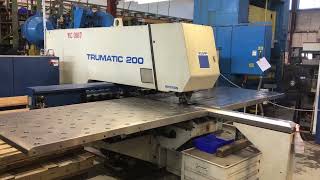

Trumpf Trumatic 200 Punch

× Bidding has ended on this item.
Ended

20 Ton Capacity, 0.24" max Sheet Metal Thickness, 81.5" X Axis Range

Prev Lot
  Lot # 11
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
  • Location
    Massachusetts
  • Logistics
    THERE WILL BE A LOADING COST OF $1,100 AND WILL BE AUTOMATICALLY INCLUDED ON THE SALES INVOICE.

  • Lot # 11
  • System ID # 488478
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 488479
Description

Year: 1996

Max punching capacity 20 tons
Max Sheet Metal Thickness: 0.24 inch
Max Workpiece Weight: 331 pounds
Max Punching Diameter: 3 inch
X axis Range: 81.5 inch
Y axis Range: 50 inches
Space Required: 236 inches x 220 inches x 86.6 inches (LxWxH)
Power Requirements: 460 V 3 Phase
Approx. Shipping Weight: 18,000 Lbs.
Approx. Shipping Dimensions: 35′ L x 8′ W x 8′ H


ALL EQUIPMENT MUST BE REMOVED BY MAY 13TH.  ANY EQUIPMENT STILL AT THE FACILITY AFTER MAY 13TH WILL BE CONSIDERED ABANDONED AND SCRAPPED.
