LOT 20

Star Ecas 20 Swiss Lathe (2005)

Current Price
$100.00
No Reserve ? $100.00
Remaining Time 17 Days, 13:53:27
Your Maximum Bid Is $0.00
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Machine Details
Location: Tennessee
Lot #: 20
End Date: Wednesday, February 25, 2026 6:35 PM Central Standard Time
Start Date: Tuesday, January 27, 2026 5:00 PM Central Standard Time
Item #: 4812152
Main Photos Display Format: contain
Main Photo Background Color: black
Machine Description

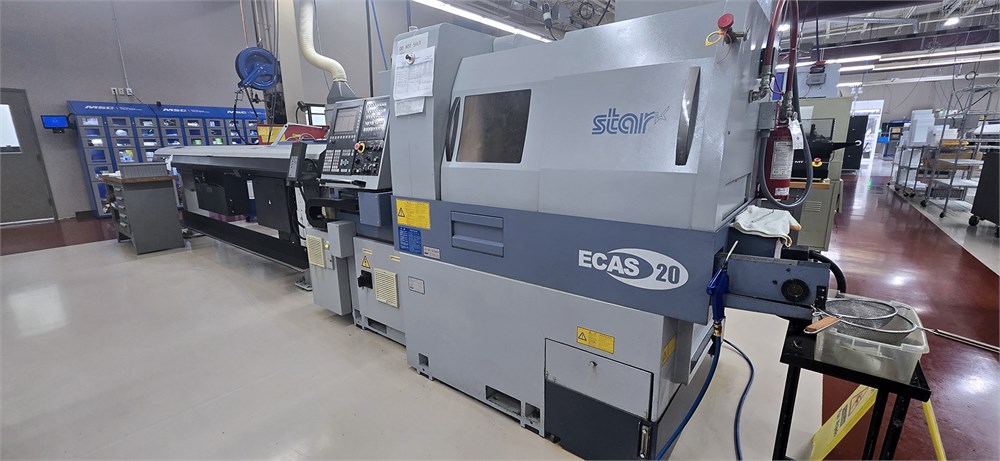

Star Ecas 20 Swiss Lathe (2005)



Description

Max. Machining Diameter
Ø20mm (25/32in)

Max. Headstock
STANDARD
205mm (8in)

Stroke
WITH GRIPPING UNIT
205mm (8in)

Tool Post
FRONT
Turning tool + Power-driven tool

REAR
Turning tool + End working stationary tool + Power-driven tool

Tool (Number of Tools)
FRONT
4 tools

REAR
2 tools

TOOL SHANK
12mm / 16mm : OP

4 Spindle Sleeve Holder
NUMBER OF TOOLS
4 tools (Rear-end working stationary tool 2 tools : OP)

MAX. DRILLING CAPABILITY
ø10mm (25/64in)

MAX. TAPPING CAPABILITY
M8 X P1.25

MAX. DIE CUTTING CAPABILITY
M8 x P1.25

Power-Driven Att.
NUMBER OF TOOLS
Front
3 tools : OP
Rear
3 tools : OP

MAX. DRILLING CAPABILITY
Ø8mm (5/16in)

MAX. TAPPING CAPABILITY
M6 x P1.0

MAX. MILLING CAPABILITY
Ø10mm (25/64in)

MAX. SLOTTING CAPABILITY
1.5mm (W) x 4mm (D)

Main Spindle Min. Indexing Degree
0.01°(C-axis control)

Main Spindle Speed
Max. 10,000 min-1

Main Spindle Motor
Built-in motor drive 2.2kw (continuous) / 3.7kw(30min)

Power-Driven Att. Spindle Speed
Max. 8,000min-1

Power-Driven Att. Drive Motor
AC servo motor 0.75kw

Coolant Tank Capacity
120ℓ
Backworking specs
Max. Chucking Diameter
Ø20mm (25/32in)

Max. Length for Front Ejection
Ø80mm (3-5/32in)

Max. Part Projection Length
30mm (1-3/16in)

4-Spindle Att. (for Back Working Side)
NUMBER OF TOOLS
4 tools

MAX. DRILLING CAPABILITY
Stationary Tool
Ø10mm (25/64in)

Power-Driven Tool
Ø8mm (5/16in)

MAX. TAPPING CAPABILITY
Stationary Tool
M8 x P1.25

Power-Driven Tool
M6 x P1.0

Sub Spindle Min. Indexing Degree
0.01° (C-axis control)

Sub-Spindle Speed
Max. 10,000min-1

Sub-Spindle Motor (AC Spindle Motor)


Dimensions (W x D x H)
2,588 x 1,150 x 1,765mm
