TIMED AUCTION
2/11 Mid-Month Open CNC & Fab No Reserve Auction
schedule Auction Ends: 2/11/2026 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  37
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Rhode Island
Logistics: BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Lot #: 37
End Date: Wednesday, February 11, 2026 9:43 PM Central Standard Time
Start Date: Thursday, January 22, 2026 5:00 PM Central Standard Time
Item #: 4797268
Machine Description

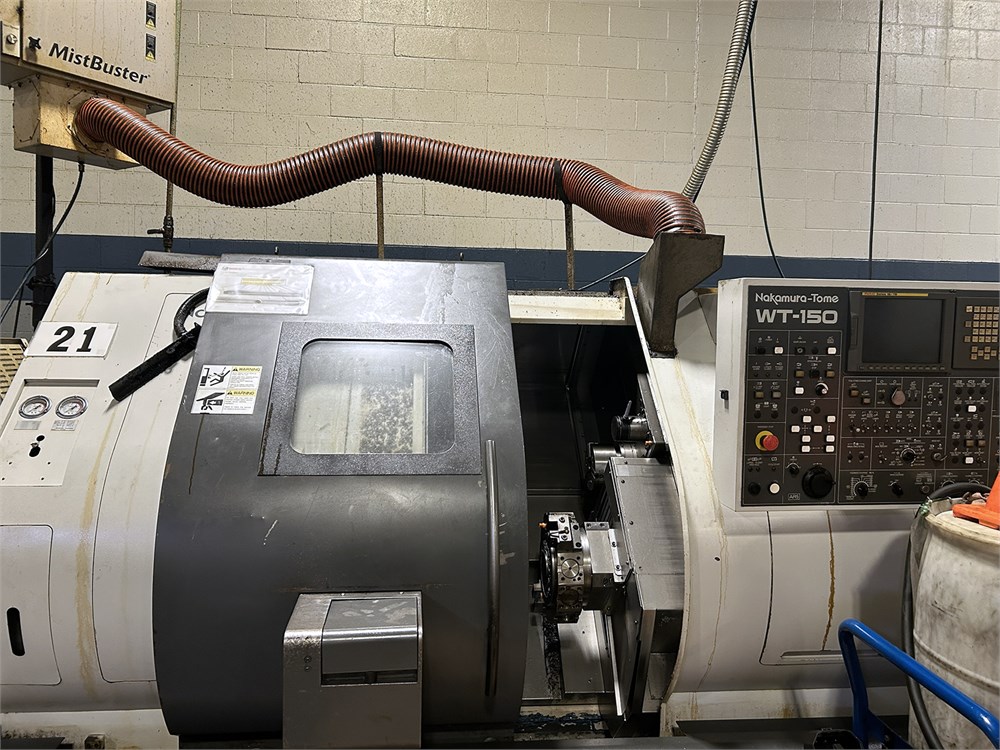

Nakamura-Tome WT-150 CNC Lathe (2008)



Description

Max turning diameter: 7.5" (190 mm)
Max turning length: 20.3" (515 mm)
Distance between centers / spindle noses: max ~31.5"–29.6" (800–750 mm) / min 7.9" (200 mm)
Bar capacity: 2.00" (51 mm)
X1 / X2 travel: 6.6" (167.5 mm)
Z1 / Z2 travel: 20.3" (515 mm)
B-axis travel: 23.7" (600 mm)
Y-axis (upper turret): ±1.4" (±35 mm) — optional
Rapid traverse: X 630 ipm (16 m/min),
Rapid traverse: Z 1575 ipm (40 m/min),
Rapid traverse: B 1575 ipm (40 m/min),
Rapid traverse: Y 236 ipm (6 m/min)
Spindle speed: 5,000 rpm
Spindle nose: A2-5
Through spindle (bore): 2.5" (63 mm)
C-axis resolution: 0.001°
C rapid index: 600 rpm
Live tooling speed: 6,000 rpm
Spindle motor: 20 HP (15/11 kW)



Equipped With

Fanuc 18i-TB CNC Control,
3-Jaw Chuck,
Dual Turrets,
Misc. Tool Holders,
Coolant Tank,
Chip Conveyor
