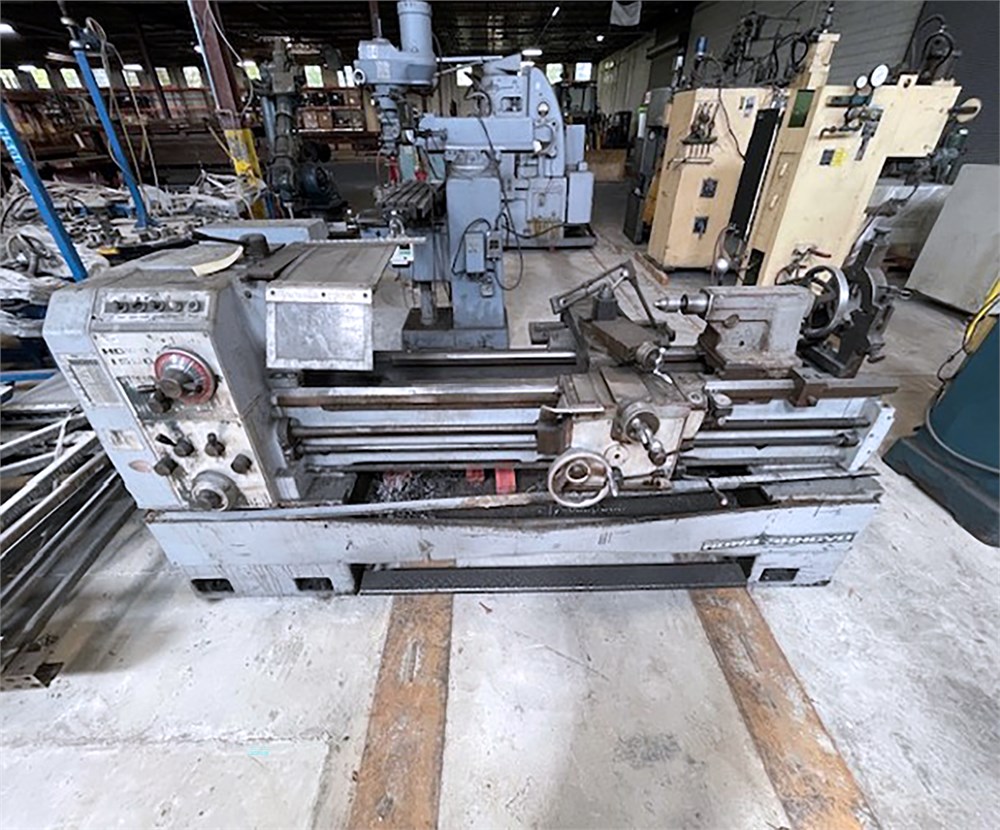

Howa Sangyo 430x1500 Manual Engine Lathe

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 11
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
15 Days, 20:32:26
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
North Carolina

  • Lot # 11
  • System ID # 4783091
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4783092
Description

Howa Sangyo 430x1500 Manual Engine Lathe



Description

SWING OVER BED: 16-7/8Inch
SWING IN NATURAL GAP: 18-1/2Inch
FROM FACE PLATE: 6-1/2Inch
SWING OVER CARRIAGE: 9Inch
DISTANCE BETWEEN CENTERS: 59Inch
HOLE THROUGH SPINDLE: 2-3/64Inch
SPINDLE TAPER: D1-6Inch CAMLOCK
SPINDLE SPEED RANGE (16): 30 - 1500 RPM
LONGITUDINAL FEED RATES (32): .0016 - .0276 IPR
CROSS FEED RANGE (32): .0008 - .0118 IPR
ENGLISH THREADING RANGE (32): 4 - 56 TPI
METRIC THREADING RANGE (21): .5 - 7 TPI
TAILSTOCK SPINDLE DIAMETER: 2-9/16Inch
TAILSTOCK SPINDLE TAPER: #4MT
TAILSTOCK SPINDLE TRAVEL: 6Inch
APPROXIMATE DIMENSIONS: 112Inch X 45Inch X 52Inch
APPROXIMATE WEIGHT: 5,000 LBS.
