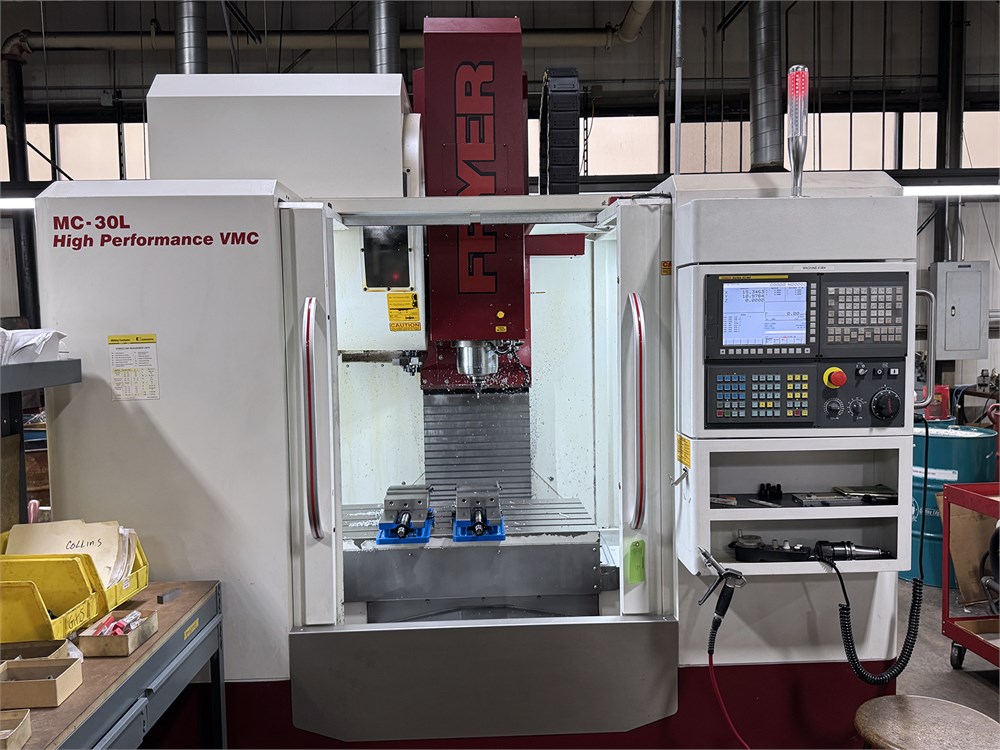

Fryer MC-30L Vertical Machining Center (2020)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 8
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
26 Days, 05:23:47
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Illinois

  • Lot # 8
  • System ID # 4718507
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4718508
Description

Fryer MC-30L Vertical Machining Center (2020)



Description

X TRAVEL - 30"
Y TRAVEL - 20"
Z TRAVEL - 20"
BALLSCREW SIZE - 1.57"
TABLE LOAD (EVENLY DISTRIBUTED) - 2,500 LBS
TABLE SIZE - 20"X35"
T-SLOTS (NO./WIDTH) - 5/.708"
TABLETOP TO FLOOR - 28"

MOTOR HP (PEAK) - 28HP
SPINDLE SPEED (RPM) - 60-10,000
SPINDLE TORQUE (MAX) - 155 FT/LBS @ 350 RPM
TOOL TYPE/TAPER - BIG PLUS CAT 40
SPINLE NOSE TO TABLE (MAX-MIN) - 24"-4"
SPINDLE CENTER TO COLUMN - 21"

TOOL STORAGE CAPACITY - 30 STATION HIGH SPEED ARM TYPE
TOOL CHANGE TIME - 1.5 SEC
MAX. TOOL DIAMETER (FULL) - 3.2"
MAX. TOOL DIAMETER (ADJACENT EMPTY) - 5.9"
MAX. TOOL WEIGHT - 15.4 LBS
MAX. TOOL LENGTH - 13"

POSITIONING ACCURACY X,Y,Z - +/- 0.0002"
POSITIONING REPEATABILITY X,Y,Z - +/- 0.0001"
RESOLUTION - 0.0001"
RAPID TRAVERSE - 1,450 X, Y, Z
CUTTING FEED RATE - .001 - 1,200 IPM
SERVO TPE - AC Digital Brushless
AXIS THRUST (PEAK) - 4,000 lbs. X, Y, Z

AIR PRESSURE REQUIREMENTS - 90PSI - 5 CFM
COOLANT CAPACITY - 90 Gallons
COOLANT FLOW - 9 gal/min
DOOR OPEN WIDTH - 32"
POWER REQUIREMENTS - 40amp 380-500 VAC 3PH
MACHINE WEIGHT - 9,500 LBS
OPERATING DIMENSIONS (W X D X H)- 111"X86"X110"



Equipped With

Fanuc Series oi-MF Control,

Chip Conveyor,

Coolant Tank
