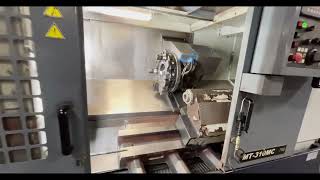

Ecoca MT-31OMC/750 CNC Lathe (2008)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 25
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
12 Days, 11:25:04
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Canada

  • Lot # 25
  • System ID # 4696556
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4696557
Description

Ecoca MT-31OMC/750 CNC Lathe (2008)

Description


Swing & Capacity:

Swing over bed: 23.62 in

Swing over cross slide: 15.75 in

Maximum turning diameter: 17.72 in

Maximum work length: 19.29 / 29.13 / 38.98 in

Draw tube diameter: 2.95 in

Chuck size: 10 in

Spindle:

Spindle drive motor: 20.1 / 24.8 hp

Spindle speed range: 0–4200 rpm

Spindle nose: A2-8

Through-spindle hole diameter: 3.54 in

Front bearing diameter: 5.12 in

Spindle taper: 1/20 MC / MCS

Milling (Sub-Spindle)

Sub-spindle milling speed: up to 3800 rpm

Axis Travels & Motors

X-axis travel: 8.86 in

Z-axis travel: 20.08 / 29.92 / 39.76 in

X-axis motor: 4.0 hp

Z-axis motor: 4.0 hp

X-axis rapid traverse: 65.6 ft/min

Z-axis rapid traverse: 65.6 ft/min

Guideways:

Type: Hard rail

Turret & Tooling

Tool stations: 12

External turning tool size: 1 in

Boring bar diameter: 1.57 in

Tailstock:

Quill diameter: 3.54 in

Quill travel: 4.72 in

Tailstock travel: 22.05 / 31.89 / 41.73 in

Quill taper: MT #5

Electrical & Coolant

Electrical power supply: 30 kVA

Coolant tank capacity: 39.6 gal

Coolant flow rate: 5.28 gal/min

Dimensions & Weight

Floor space (L × W x H): 145.67 × 82.68 in x 75 in

Approx. net weight: 12,787 lb

Equipped With

Chip Conveyor,

Live Tooling.
