Perfecto 500-36 - Single Roll Electronic Feeder 1990

× Bidding has ended on this item.
Ended
TIMED AUCTION
Prev Lot
  Lot # 20
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Wisconsin
Logistics
LOADING FEE OF $2,000.00 WILL BE ADDED TO WINNING INVOICE

  • Lot # 20
  • System ID # 4695211
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4695212
Description

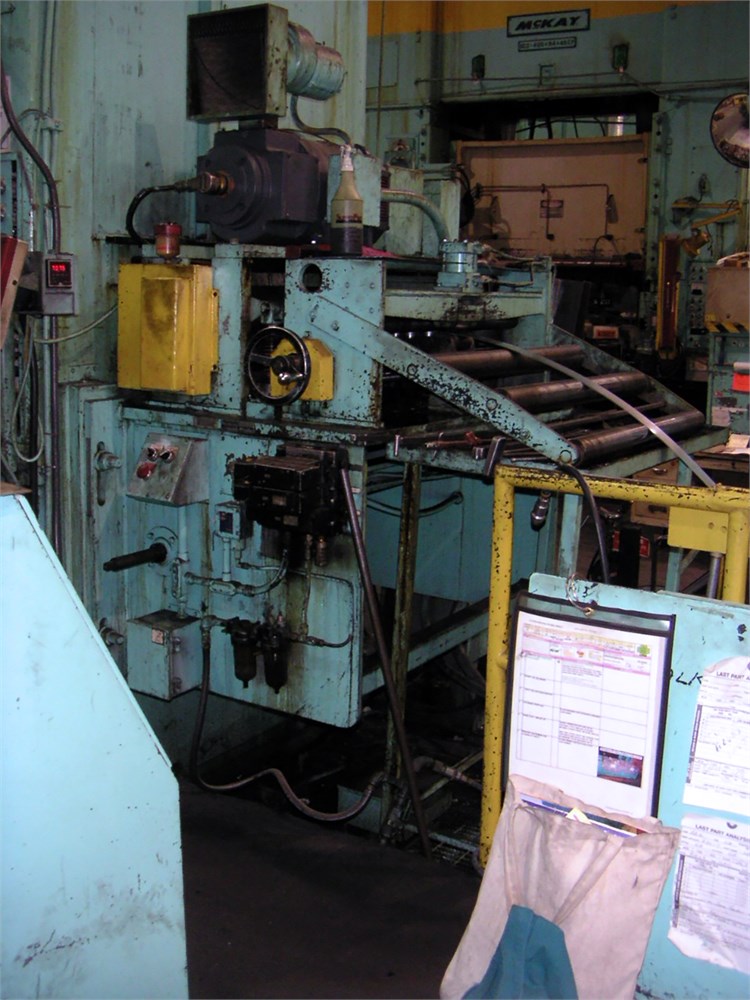

Perfecto 500-36 - Single Roll Electronic Feeder 1990



Description

Feed to be mounted to a straight side press
With Feed Direction: Right to Left
Feed Level Adjustments +/- 3" by an adjusting screw jack from nominal height of 67"

Specs:
Feed Capacity in Pre-Straightened Mild Steel
Maximum Material Thickness: .100" x 18" wide
Maximum Material Width: 36" x .030 Thick
Feed Roll 5" Diameter by 37" Long
Feed Length Capability: 0 to 99.999 inches with feed length setting controlled by Pushbutton panel on console

Roll position accuracy +/- 0.010 at 1200" per minute line speed
