Friedrich Deckel Model FP-1 Universal Horizontal & Vertical Milling Machine

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 46
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
9 Days, 15:32:52
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Addison, IL

  • Lot # 46
  • System ID # 4679171
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4679172
Description

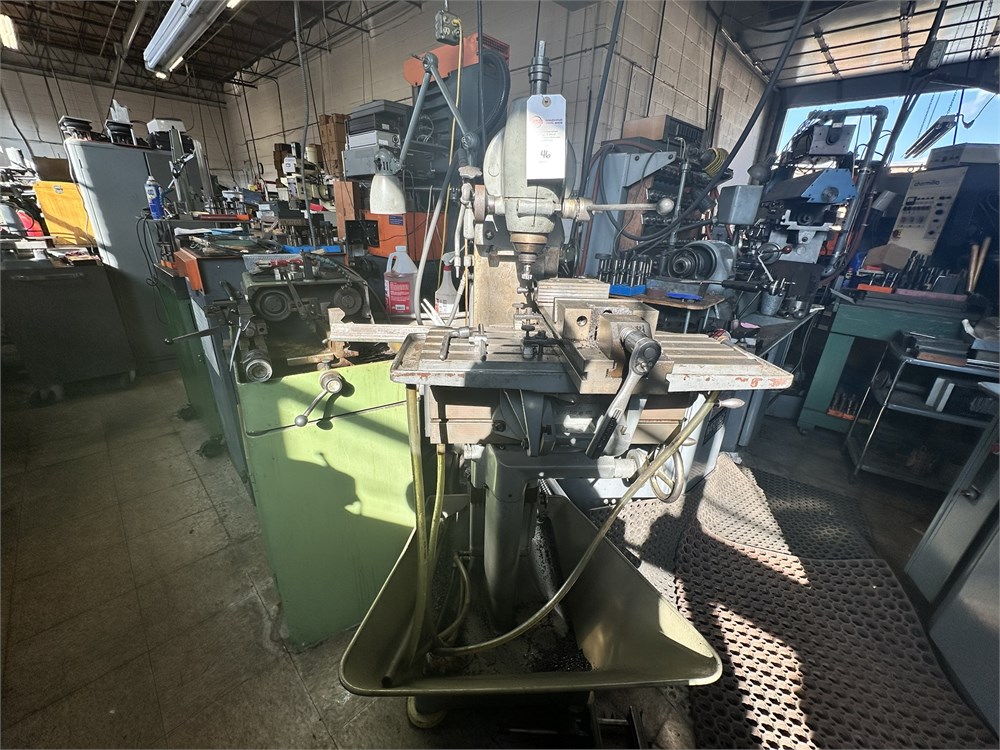

Friedrich Deckel Model FP-1 Universal Horizontal & Vertical Milling Machine


X-Axis Longitudinal Travel: 290/300 mm (11.4/11.8 in.)
Y-Axis Transverse Travel: 150/160 mm (5.9/6.3 in.)
Z-Axis Vertical Travel: 330/340 mm (13.0/13.4 in.)
Quill Stroke Z-Axis: 60 mm (2.36 in.)
Vertical Cutter Head Adjustment
Headstock Range:100 mm (3.94 in.)
Deckel FP1 Main Drive: 1.5/1.9 kW (2/2.5 HP)
Spindle Speed Range (16): 40-2000 RPM
Speed Progression Factor: 1.25
Tool Mount: NT40
Tool Clamping: Manual
Feed Drive: D.C. Motor
Feed Range – Inf. Variable: 5-500 mm/min (.2-19.7 in./min)
Rapid Traverse: 1,200 mm/min (47.2 in./min)
Table Slides Number of T-slots: 2 (12^H7)
Distance Between T-slots: 90 mm (3.5 in.)
Approximate Load – Maximum: 300 kg (661 Lbs.)
Coolant Amount: 15 L (4 US gal.)
Operating Voltage: 440/3/60
