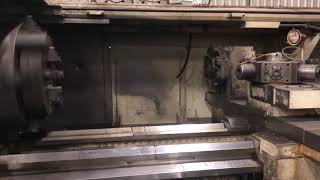

Okuma LH55-N 2002 CNC Lathe

× Bidding has ended on this item.
Ended

30" 4-jaw Chuck, Chip Conveyor, A2-15" Spindle Nose

Prev Lot
  Lot # 7
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
  • Location
    North Bay, ON

  • Lot # 7
  • System ID # 457988
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 457989
Description

Control: OSP E100L CNC Control

Year: 2002

Turret Type: Two Turret (V8 back, H6 front)
Chuck Size: 30"
X-axis Travel: 26.57"
Z-axis Travel: 119.29"
Spindle Nose: A2-15"
Spindle Bore: 12.99"
Swing Over Bed: 43.31"
Swing Over Saddle: 26.97"
Max Machining Diameter: 43.31"
Distance Between Centers: 120"
Rapid Feedrate (X): 197 ipm
Rapid Feedrate (Z): 394 ipm
Cutting Feedrate (X): 0.001 ipm
Cutting Feedrate (Z): 29.37 ipm
Turret Position: 14 Total
Spindle Ranges: 4 total
Max Spindle Speed: 1000 rpm
Spindle Motor: 50 hp
Tailstock Taper: MT #6

Equipped With:

OSP E100L CNC Control,
5980 Cutting Hours,
Chip Conveyor,
Tailstock with Programmable Quill,
Two Turret (V8 back, H6 front),
A2-15 Spindle Nose 12.99" Through,
Steady Rest,
30" 4-jaw Chuck,



ALL EQUIPMENT MUST BE REMOVED BY 3/31

THERE WILL BE A LOADING FEE OF $1,000.00 AND WILL BE AUTOMATICALLY INCLUDED ON THE SALES INVOICE.
