Trumpf TruLaser 5040 C02 Laser (2007)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 38
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
6 Days, 19:45:37
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Canada

  • Lot # 38
  • System ID # 4573892
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4573893
Description

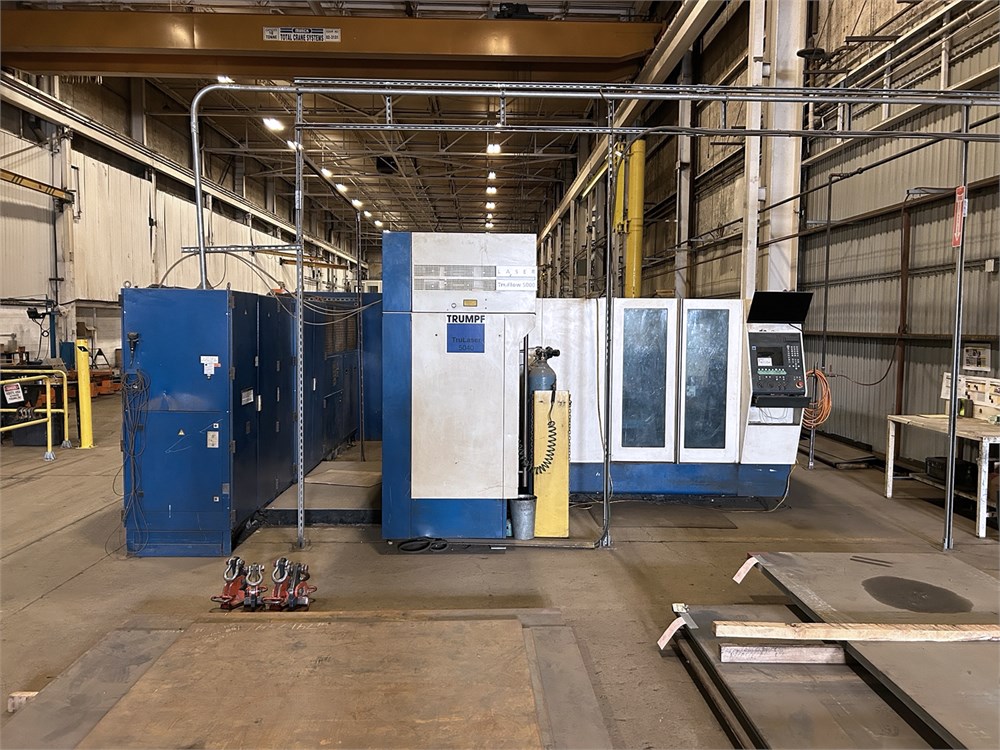

Trumpf TruLaser 5040 C02 Laser (2007)



Description

Trumpf Trulaser 5040 – CO₂ Laser Cutting Machine

Model: Trulaser 5040

General Dimensions:

Length: 456.7 in (38.1 ft)

Width: 181.1 in (15.1 ft)

Height: 94.5 in (7.9 ft)

Weight: 26,455 lbs

Performance:

Laser Power: 5 kW (CO₂)

Maximum Material Thickness: 0.98 in

Maximum Workpiece Weight: 2,756 lbs

Cutting Area:

Metal Length Capacity: 118.1 in (9.8 ft)

Metal Width Capacity: 59.1 in (4.9 ft)

Axis Travel:

X-Axis Travel: 157.5 in (13.1 ft)

Y-Axis Travel: 78.7 in (6.6 ft)

Z-Axis Travel: 4.5 in

Known Issues:
Indicators are ‘Red’ in the picture of the control because the maintenance team does not have the password to reset them. Water level, conductivity, anode and changing are done according to schedule.

The oxygen sensor is not working, which is needed for operation. Repair is estimated at $3,000 USD.

Nitrogen is too slow for the beam power and we only have an oxygen head. Also, the other issue we have is the scrap conveyor is not working.



Equipped With

Chiller,

Dust Collector,

Dual Pallet Shuttle Tables,

Trumpf TruFlow 4000 CO2 Resonator
