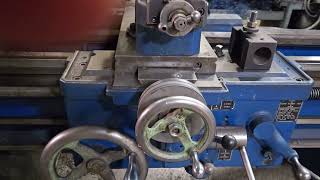

20" x 144" SouthBend Engine Lathe

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 5
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
29 Days, 09:43:43
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Illinois

  • Lot # 5
  • System ID # 4567004
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4567005
Description

20" x 144" SouthBend Engine Lathe



Description


CAPACITY

Swing over bed and saddle wings: 20"
Swing over cross slide: 13"
Swing over cross slide without chip guard: 14”
Swing over compound rest: 4"

HEADSTOCK
Spindle nose: 8" D-1 Cam-Lock
Size of center (Morse taper): No.5
Distance from spindle center to floor: 45-1/2”
Hole through spindle: 3-5/32"

SPINDLE SPEEDS
1800-900 rpm motor (two speeds):
(18) 30-1580 RPM
Two-speed motor: 10-5 HP

BED
Width : 13"
Length: 150"
Distance Between Centers: 132”

GEARBOX-THREADS & FEEDS
Number of thread selections: 60
Range of threads (20T stud gear)
60 selections: 2-3/4"-160" t.p.i.
Range of threads (40T stud gear)
Range of longitudinal feeds
(60): 0.0021"-0.1242"
Range of cross-feeds
(60): 0.0011 "-0.0678"
Lead screw: 1-3/8"- 4"
SADDLE
Cross-feed travel (without taper attachment) ... 12-1/4"
Cross-feed travel (with taper attachments): 14"
Compound rest travel: 3-1/2"
Square tool post opening: 1" x 1-7/64"
TAILSTOCK
Spindle diameter: 2-1/2"
Spindle travel: 6"
Size of centers (Morse taper): No.4
Set over in either direction from center: 1/2"
Approx Machine Dims-162" Overall Length x 65" W x 76"H
Weight- Approx -12,000 Lbs.



Equipped With

Sony 2-Axis DROs,
Tailstock,
Threading IN/MM,
(2) Steady Rest
