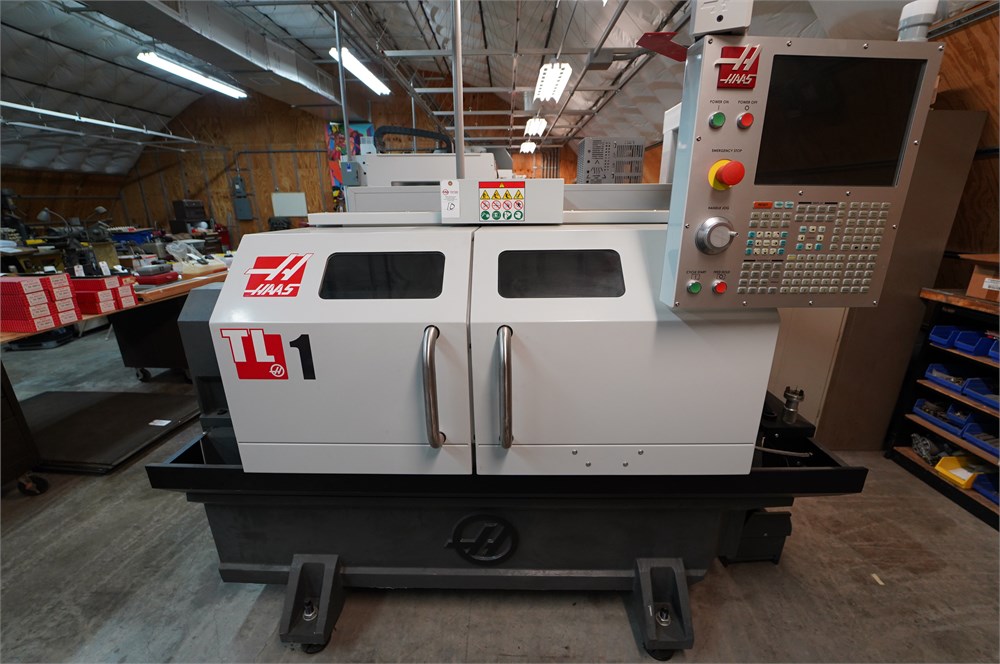

2019 Haas TL-1 CNC Lathe

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 10
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
16 Days, 23:43:43
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Dale, TX

  • Lot # 10
  • System ID # 4564186
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4564187
Description

A2-5 Nose Chuck Size, 2.3'' Bar Capacity, 1.8k RPM, 10 HP Motor, Swing Ober Front Apron 20'', Swing Over Cross Slide 11'', No Chuck, But Fits 8'', Max Cutting Diameter (with Tool Post) 16'', Max Cutting Diameter (with 4-Station Turret) 8'', Max Cutting Length (with Tool Post) 30'', Max Cutting Length (with 8-Station Turret) 1.65'', Between Centers 30'', Travel X-Axis 8'', Travel Z-Axis 30'', Federates : Rapid on X 450 IPM, Rapid on Z 450 IPM, Spindle : Max Rating 10 HP, Max Speed 1800 RPM, Max Torque 108ft - IBF @ 355 RPM, Spindle Bore 2.3''. Drive System Direct Speed , Belt Drive ,Input AC Voltage 1 Phase - 220 VAC,Full Load 40 Amp, Input AC Voltage 3 Phase - 440 VAC, Full Load Amps 25 Amp Low, Full Load Amps High 13 Amps, Weight 4200 Lbs., Size 89'' X 66.5'' X 83''
