Machine Details
Machine Description

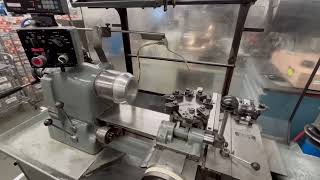

Hardinge HC Super Precision Engine Lathe
Description
Spindle capacity:
w/round 5C Hardinge collets: 1-1/16"
w/Heksagon 5C Hardinge collets: 7/8"
w/square 5C Hardinge collets: 3/4"
w/step chucks: 1-1/16" to 6"
w/jaw chucks: 6"
Spindle nose diameter: 2.189"
Spindle nose thread: 2-3/16" - 10 R.H.
Maximum fixture diameter: 9"
Maximum distance from face of turret
to spindle: 13"
Travel of cross slide: 4-1/2"
Cross slide power feed range: 1/4" to 10" per min..
Spindle speeds:
3 Selector variable speed machines
Low speeds: 125 to 1100 rpm
High speeds: 1100 to 3000 rpm
Weight of machine: 1750 lbs.
Dimensions: 72" L-R X 28" F-B X 64" h
Electrics: 220 volts, 3 ph, 60 cyc
Equipped With
Sony DRO
Air Handler
8-Station Tool Turret
Coolant System (integrated)
Full Rear Splash/Chip Guard
Variable Speed Drive
