TIMED AUCTION
10/29 Monthly Multi-Facility CNC & Fab Auction
schedule Auction Ends: 10/29/2025 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  28
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Wisconsin
Logistics: BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Lot #: 28
End Date: Wednesday, October 29, 2025 6:15 PM Central Standard Time
Start Date: Wednesday, October 1, 2025 4:00 PM Central Standard Time
Item #: 4523424
Machine Description

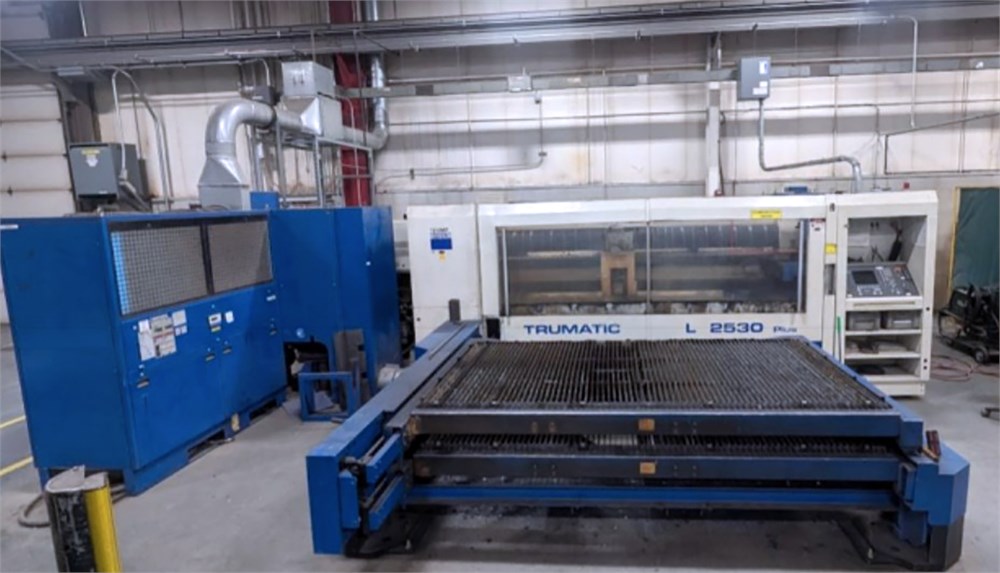

Trumpf Trumatic L2530 C02 Laser (2004)



Description


Laser Type CO₂ Laser Resonator (TRUMPF TLF 4000 Turbo)

Laser Power 4,000 watts (4 kW)

Work Area (X × Y) 98.4 " × 49.2 "

Z-Axis Travel / Sheet Clearance 4.5 "

Control System Siemens Sinumerik 840D

Max Sheet Size 98 " × 49 "

Max Material Thickness — Mild Steel up to 0.87 "

Max Material Thickness — Stainless Steel up to 0.50 "

Max Material Thickness — Aluminum up to 0.35 "

Max Workpiece Weight ≈ 1,100 lb

Positioning Speed (X/Y) ≈ 2,360 in/min (60 m/min) axis-parallel

Simultaneous X+Y Speed ≈ 3,300 in/min (84 m/min)

Acceleration ≈ 32 ft/s² (1 g, typical for flying-optics design)

Positioning Accuracy ± 0.004 "

Repeatability ± 0.001 "

Electrical Requirements ~480 V / 60 Hz / 3-phase

Assist Gases Oxygen / Nitrogen / Air (depending on material)

Cooling External water chiller (TRUMPF or similar, ~30 kW capacity)

Machine Dimensions (L × W × H) 25.6 ft × 17.7 ft × 7.5 ft

Machine Weight ≈ 17,400 lb



Equipped With

Siemens Sinumerik 840D-Based Trumpf CNC Control,

Trumpf 4.0 KW Turbo Resonator,

Twin Pallet,

Cooling Unit,

Integrated Dust Collector,

Twin Shuttle Table
