Takisawa EX-110 CNC Lathe (2003)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 1
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
11 Days, 07:30:13
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Illinois

  • Lot # 1
  • System ID # 4460597
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4460598
Description

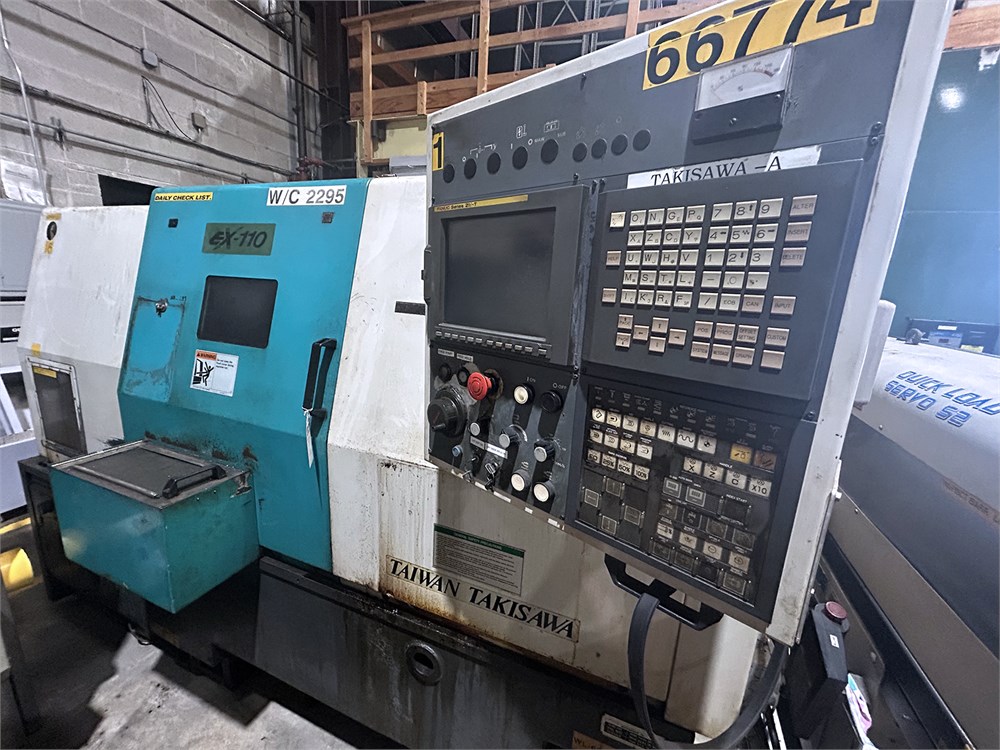

Takisawa EX-110 CNC Lathe (2003)



Description

X-Axis Travel…………8 1/2"
Z-Axis Travel…………28"
Chuck Size…………10"
Chuck Size – Maximum Swing…………19 1/2"
Turning Diameter – Maximum…………15 3/4"
Turning Length – Maximum…………28"
Bar Capacity…………3"
Tailstock – Quill Diameter…………4 1/4"
Tailstock – Stroke…………5.880"
Tailstock – Quill Center…………MT#5
Tailstock – Body Travel…………22.880"
Spindle Speed – Variable…………50 – 3500 RPM
Spindle Nose…………A2-8
Spinde Power…………25 HP
Spindle Bore…………3.38"
Turret, Bi-Directional…………12 Position
Tool Shank Size – Square…………1"
Tool Shank Size – Round…………2"

Approximate Dimensions…………110"L x 67"W x 71"H

Approximate Weight…………11,000 Lbs.



Equipped With

Parts Catcher,
Chip Conveyor,
LNS Quick Load Servo S2 Bar Feed,
Tailstock
