Emco Turn 332MC Horizontal Turning Machine (2003)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 20
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
10 Days, 01:00:37
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Michigan

  • Lot # 20
  • System ID # 4457695
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4457696
Description

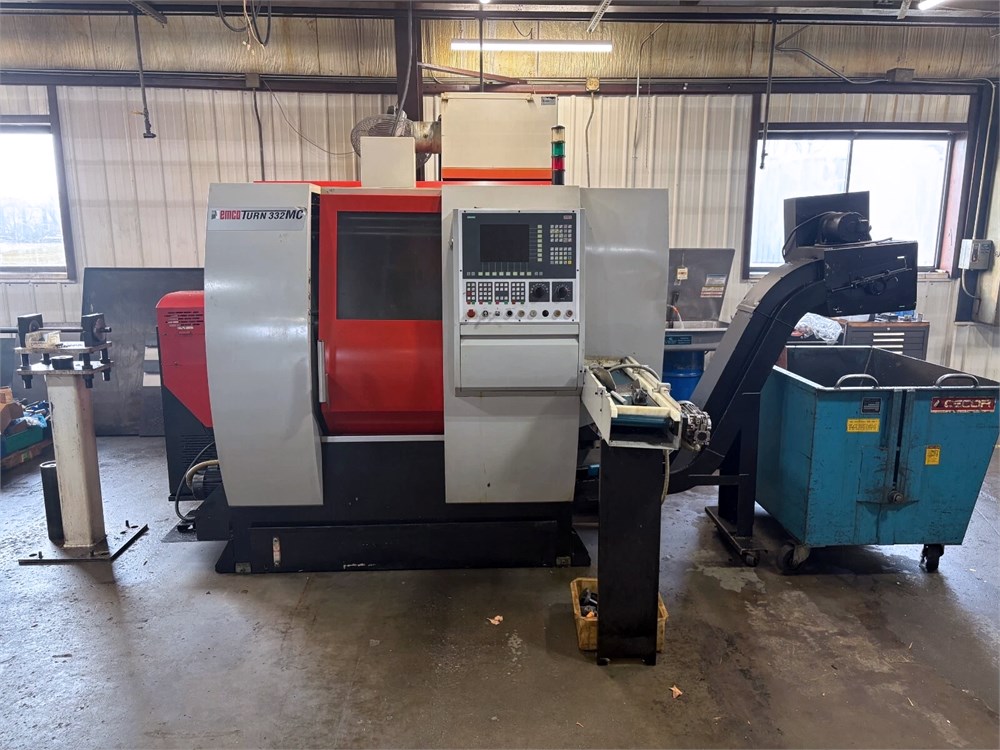

Emco Turn 332MC Horizontal Turning Machine (2003)



Description

Bar Capacity - 1.25"
Max Swing Over Slant Bed - 16"
Max Turning Capacity - 8.7"
Max Machinable Center Distance - 20"
Cross Travel (X-Axis) Upper Turret - 6.3"
Lower Turret - 5.5"
Longitudinal Travel (Z-Axis) Upper Turret - 20.1"
Lower Turret - 20.1"
C-Axis on Both Spindles - .001 Degree
Tool Positions (12 on Each Turret) - 24 Total
Spindle Nose - A2-4
Spindle Speed Range - 50-8000 RPM
Spindle Horsepower - 17 HP
Counter Spindle - 7000 RPM
Counter Spindle Horsepower - 13 HP
Live Tooling Speed Range - 98-6000 RPM
Live Tooling Horsepower - 6.8 HP
Approximate Machine Dimensions - 78" x 104"
Approximate Machine Height - 78"
Approximate Machine Weight - 6700 LBS



Equipped With

Coolant Tank,
Chip Conveyor,
Parts Conveyor,
(2) Collets,
Static Tooling,
Live Tooling
