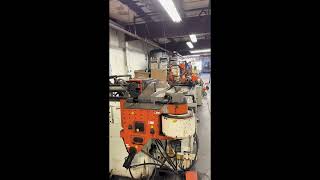

Chiyoda SP-60ST Tube Bender (2007)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 8
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
14 Days, 16:48:40
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Maine

  • Lot # 8
  • System ID # 4449497
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4449498
Description

Chiyoda SP-60ST Tube Bender (2007)



Description

Specification:
Max. Dia (steel pipe - standard wall): 63.5 mm x 3.8 mm (2.5" x 0.14")
Max. Dia: (thick-wall steel pipe): 60.5 mm x 4.5 mm (2.38" x 0.18")
Bending radius: 200 mm center (7.87")
Max R Difference: 80mm (3.15")
Max. bending angle: 0 – 180 (table rotation 190)
Bending direction: Left Hand
Effective chuck length: Max. 2300mm (90.5")
Chuck Carriage Stroke: Max. 2230mm (87.8")

Operation Speed:
Bending speed: 2.5 – 22 sec/180
Feed speed: 200 – 700 mm/sec
Plane axis speed: 1.0 – 10 sec./ 1 bend
Average machine time: 4 – 10 sec. / 1 bend
Repeatability:
Bending: +/- 0.1
Feed: +/- 0.1mm
Plane axis rotation: +/- 0.1

Weight Approx: 9000 lbs
Dimensions: 180" x 65" x 70"



Equipped With

Updated Bendpro G2 control in 2018
