EVOQUA/ Siemens Reverse Osmosis, Carbon Unit and Deionized System (2014)

× Bidding has ended on this item.
Ended
TIMED AUCTION
Prev Lot
  Lot # 7
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Pennsylvania
Logistics
LOADING FEE OF $9,500.00 WILL BE ADDED TO WINNING INVOICE

  • Lot # 7
  • System ID # 4440677
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4440678
Description

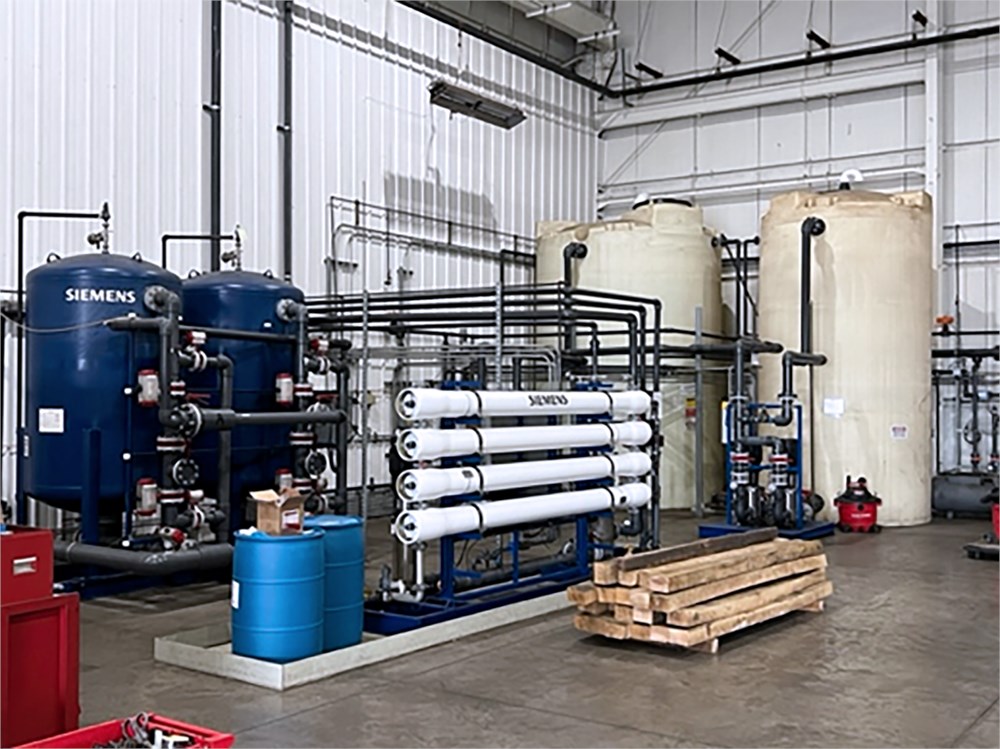

EVOQUA/ Siemens Reverse Osmosis, Carbon Unit and Deionized System (2014)



Description


--- Siemens PTI Pretreatment Carbon Filter ---

Model: PTICPDA54X72
54" × 72" epoxy-lined vessel, 35–45 ft³ carbon media
Flow 100–250 GPM, automatic backwash
Siemens PLC/HMI
Features: Duplex alternating mode, reversible feed, separate backwash manifold, sight glass, thermal relief valve, seismic-rated

--- Siemens Vantage M83 Series RO System ---

Model: M83R012XSY
Reverse Osmosis (RO), single-pass, 60 GPM design flow
8" TFC membranes, 3:2 staging, 98–99% rejection
316 SS high-pressure pump
ASME FRP vessels

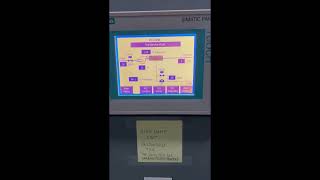

Siemens SIMATIC PLC/HMI with alarms, flow meters, conductivity sensors
Spare Membrane Filters

--- Electronic Siemens/ Evoqua DI System ---

--- RO Pump Skid --
(2) Grundfos CRN45-2 - 237.75 GPM
(2) Baldor - Reliance 15HP
Siemens Control

--- DI Pump Skid ---
(2) Grundfos NMP3-4.2 - 158 GPM
(2) Baldor - Reliance - 10HP
Siemens Control

--- Poly Processing Storage Tanks ---
RO - 8,000 Gallon
DI - 5,000 Gallon

Automatic Level Sensors
