Shibaura TX-13 Vertical Boring Mill

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 31
Next Lot
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
9 Days, 23:25:37
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
  • Lot # 31
  • System ID # 4438903
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4438904
Description

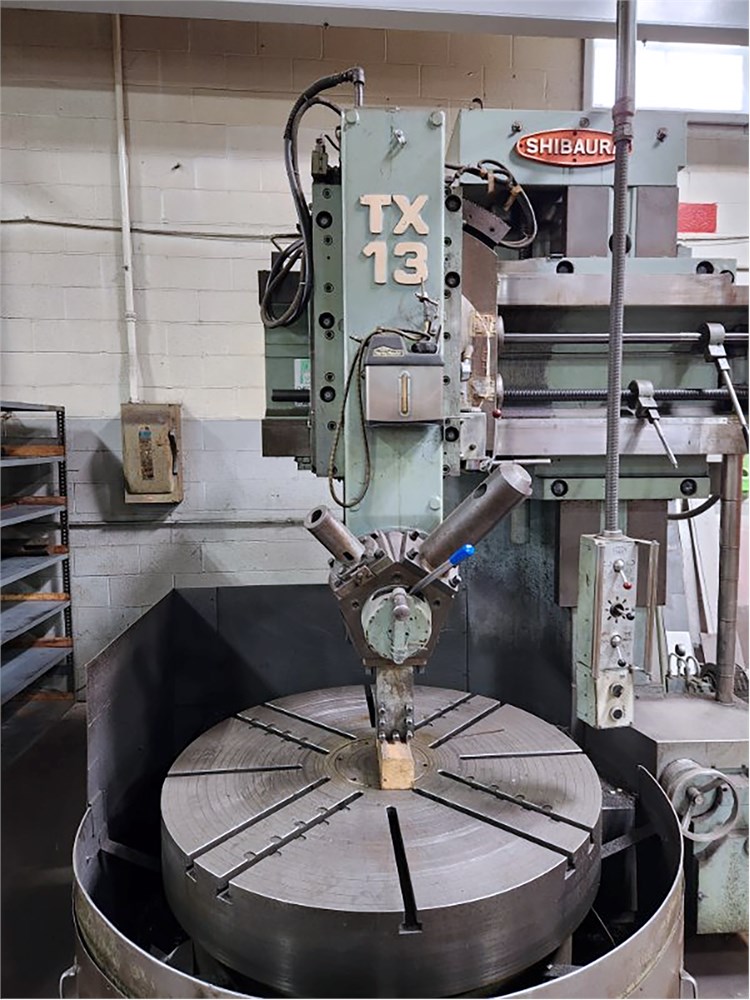

Shibaura TX-13 Vertical Boring Mill (1978)



Description

Table Diameter: 49.2"
Max. Swing: 63"
Max. Turning Height: 41.3"
Horizontal Travel of rail head: -3.94" ~ 31.5"
Vertical Travel of turret ram: 29.5"
Vertical Travel of cross rail: 23.6"
Max. table load: 11,100 lbs
Max. table torque: 11,600 ft-lb
Max. cutting force of rail head: 4,410 lbs
Table Speed: 4.5 - 200 rpm
Feed rate: 0.003 - 0.14 in/rev
Rapid traverse of rail head: 104/125 in/min
Traverse speed of cross rail: 13.4-16.1 in/min

Overall machine height: 146"
Floor weight: 17,600 lbs
