Chevalier FSG-2A618 Surface Grinder

× Bidding has ended on this item.
Ended
TIMED AUCTION
Prev Lot
  Lot # 25
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Logistics
LOADING FEE OF $300.00 WILL BE ADDED TO WINNING INVOICE

  • Lot # 25
  • System ID # 4437817
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4437818
Description

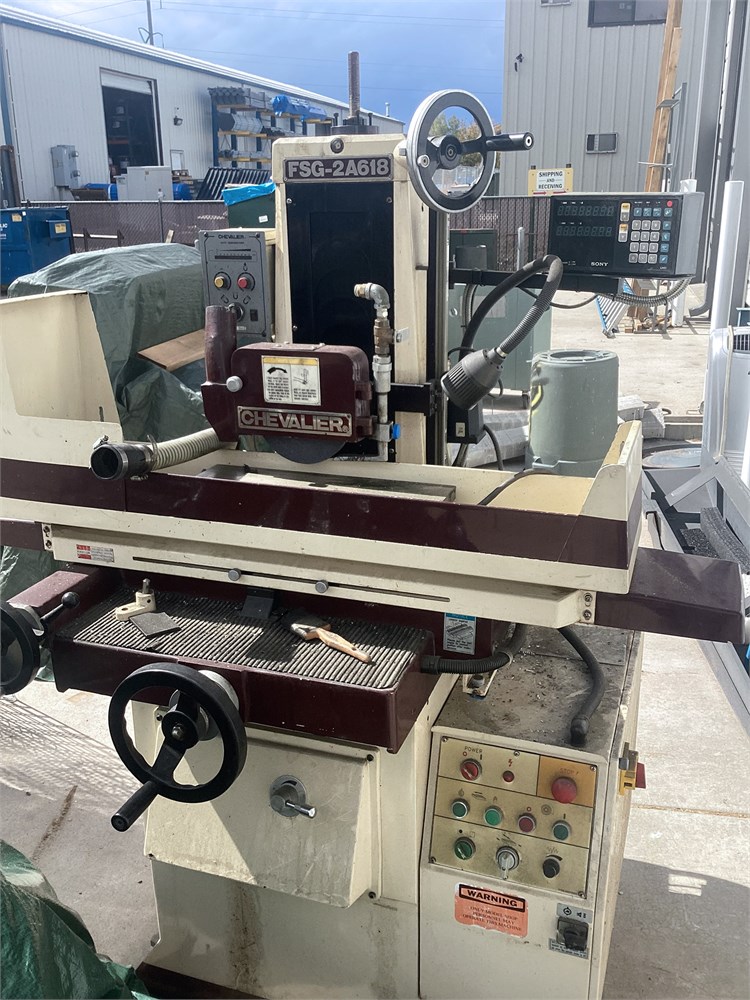

Chevalier FSG-2A618 Surface Grinder



Description

Table Size: 6" x 18"
Max. Grinding Length: 18"
Max. Grinding Width: 6"
Max. Distance From Table Surface to Spindle Centerline: 18"
Longitudinal Movement of Table
Hydraulic: 19-3/4"
Manual: 20"
Table Speed: 16- 82 FPM
Rapid Travel: 38 IPM
Automatic Traverse Increment: .02 - .24"
Max. Auto Transverse Travel: 6-3/4"
Max. Manual Transverse Travel: 7"
Cross Transverse Travel
Wheelhead Vertical Infeed
Per Graduation: 0.0001"
Per Graduation: 0.0001"
Per Revolution: 0.05"
Per Revolution: 0.05"
Standard Grinding Speeds: 60Hz @ 3,450 RPM/ 50Hz @ 2,850 RPM
Power Rating (Horse Power)
Grinding Wheel Size (Dia. x Width x Bore): 8" x 1/2" x 1-1/4"
Total Rated Power (H.P.): 3.3 H.P.
Dimensions (L x W x H): 60" x 50" x 80"
Weight: 1,750 Lbs.



Equipped With

Sony DRO, Auto Magnetizer, Vacuum pump, coolant pump
