Sodick H650L 5 Axis Machining Center (2008)

× Bidding has ended on this item.
Ended
TIMED AUCTION
Prev Lot
  Lot # 19
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Texas
Logistics
LOADING FEE OF $2,000.00 WILL BE ADDED TO WINNING INVOICE

  • Lot # 19
  • System ID # 4363771
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4363772
Description

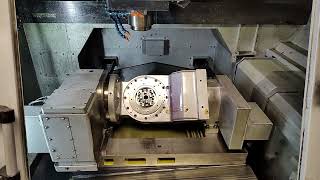

Sodick H650L 5 Axis Machining Center (2008)



Description

Run Time Hours: 3285
Spindle Speed: Up to 40,000 RPM
# Axis: 5
X-Axis Travel: 24.41 inches
Y-Axis Travel: 19.69 inches
Z-Axis Travel: 11.81 inches
A-Axis Rotation: +30 / -110
C-Axis Travel: 360°
Table Size: 29.53" × 19.69"
Maximum Part Weight: 22 lbs
Tool Holder Interface: HSK-E32
Automatic Tool Changer: 16-position carousel
Drive System: Rigid linear motors with glass scale feedback delivering ~0.0000012” (0.03 μm) accuracy—no backlash, sub-micron interpolation
Rapid Feed Rate: Up to 1,417 ipm (36 m/min)
Max Acceleration: 1 G



Equipped With

Amano Mistria Mist Collector
Sodick LN5X Control, touch-screen interface
Renishaw probe
Bloom laser tool setter



Seller Notes:
Used it for diamond turning. They were using it for tolerances better than a tenth thousandth of an inch. Extremely high precision.

We were making optics and molds for optics.

This machine was about $500,000 new

Seller replaced it with an $880,000 machine

No issues at all, very low hours.
