Machine Details
Location: Canada
Logistics: LOADING FEE OF $1,500.00 WILL BE ADDED TO WINNING INVOICE
Lot #: 17
End Date: Wednesday, September 24, 2025 5:20 PM Central Standard Time
Start Date: Thursday, August 21, 2025 8:20 PM Central Standard Time
Item #: 4294890
Machine Description

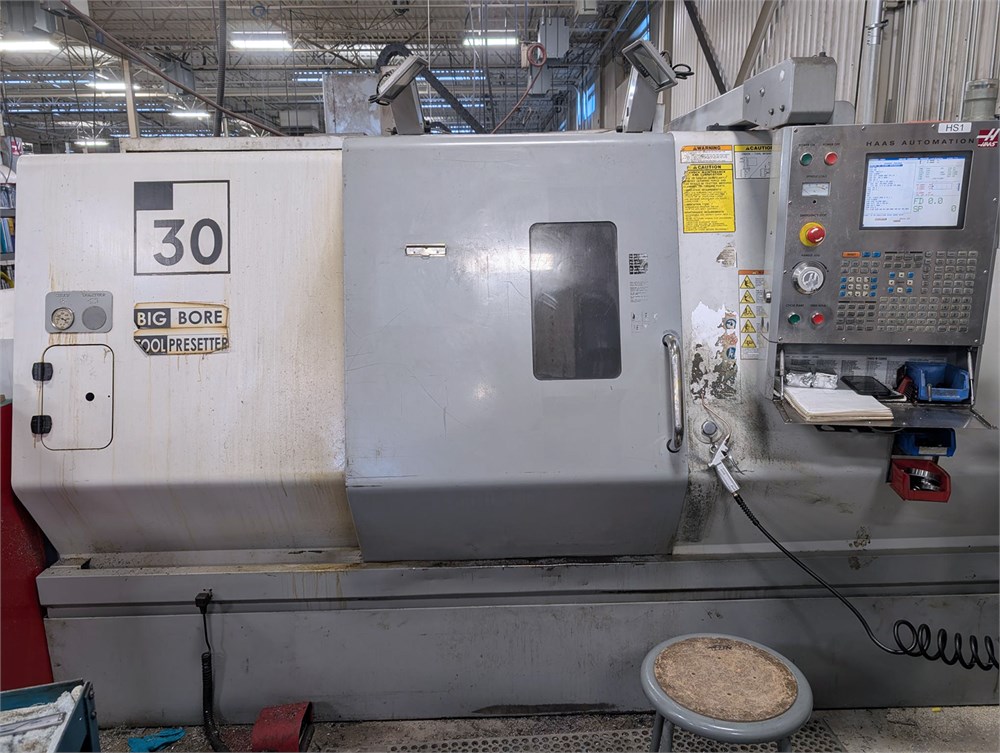

Haas SL-30B CNC Lathe (2005)



Description

Run Time: 16100 Hours
Max Turning Diameter: 17.0 in (Big Bore)
Max Turning Length (Z-Axis Travel): 34.0 in
Bar Capacity: 4.0 in
Swing Over Bed: 30.0 in
X-Axis Travel: 11.3 in
Z-Axis Travel: 34.0 in
Rapid Traverse Rate (X & Z): 710 IPM
Spindle: A2-8
Spindle Bore: 4.0 in
Spindle Speed Range: 24 to 2400 RPM
Spindle Motor: 40 HP
Turret Capacity: 12 stations
Turret Index Time: 1 sec
Power Requirements: 220 V / 3-Phase

Overall Dimensions (without Chip Conveyor): 150″ (L) × 90″ (W) × 90″ (H)
Weight: 16,000 lbs



Equipped With

Tool Presetter
15" 3 Jaw Hydraulic Chuck
