TIMED AUCTION
9/24 Monthly Multi-Facility CNC & Fab Auction
schedule Auction Ends: 9/24/2025 11:00:00 AM CST
gavel This Auction Uses Proxy Bidding
attach_money All Prices Listed in USD
Back To Auction
Ended TIMED AUCTION
Prev Lot
LOT  14
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Machine Details
Location: Illinois
Logistics: BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Lot #: 14
End Date: Wednesday, September 24, 2025 5:12 PM Central Standard Time
Start Date: Thursday, August 21, 2025 8:20 PM Central Standard Time
Item #: 4272968
Machine Description

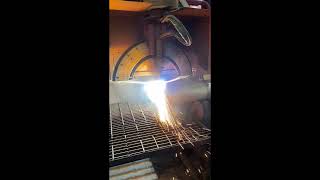

Vernon MPMP 2 Axis Tube & Pipe Cutting Machine (2015)

Description


Capacity: 8" OD Capacity
Power Rotation of Tube. Power Infeed
(1"-8") OD production capacity,
100 lbs. per ft., to a maximum load of 1000lbs.
5 ft. Machine bed assembly for total of 4.5 ft of cut length (y-axis travel)

Equipped With

Hypertherm Powermax 85 Power Supply
WinMPM Desktop Software Program
Arc Voltage Height Control with Magnetic Breakaway

Includes:
50' Motor Cable
Control Box
Precision Lifter Station with Smart Motor
*Fully integrated with Vernon Tool Master Pipe Mini Profiler
Power Box/System controller containing motion control system to consist of P.C. compatible microprocessor with serial USB and Ethernet communication ports
Self centering 3-jaw chuck included
X/Y assembly on precision machined hardened and polished
ways driven by rack & pinion drive
To control tube rotation (x-axis) and longitudinal movement (y-axis),
Self centering 3-jaw chuck included
Torch mounting assembly with manually adjustable torch height, manual bevel angle and pivot point
Qty. 2 - Pipe supports with ball transfers to allow longitudinal and rotating pipe motion.
