2019 - Cosen #SH-460M Metal Cutting Horizontal Mitering Band Saw

× Bidding has ended on this item.
Ended
TIMED AUCTION
Prev Lot
  Lot # 59
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
San Antonio. TX
Logistics
LOADING FEE OF $200.00 WILL BE ADDED TO WINNING INVOICE

  • Lot # 59
  • System ID # 4229542
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 4229543
Description

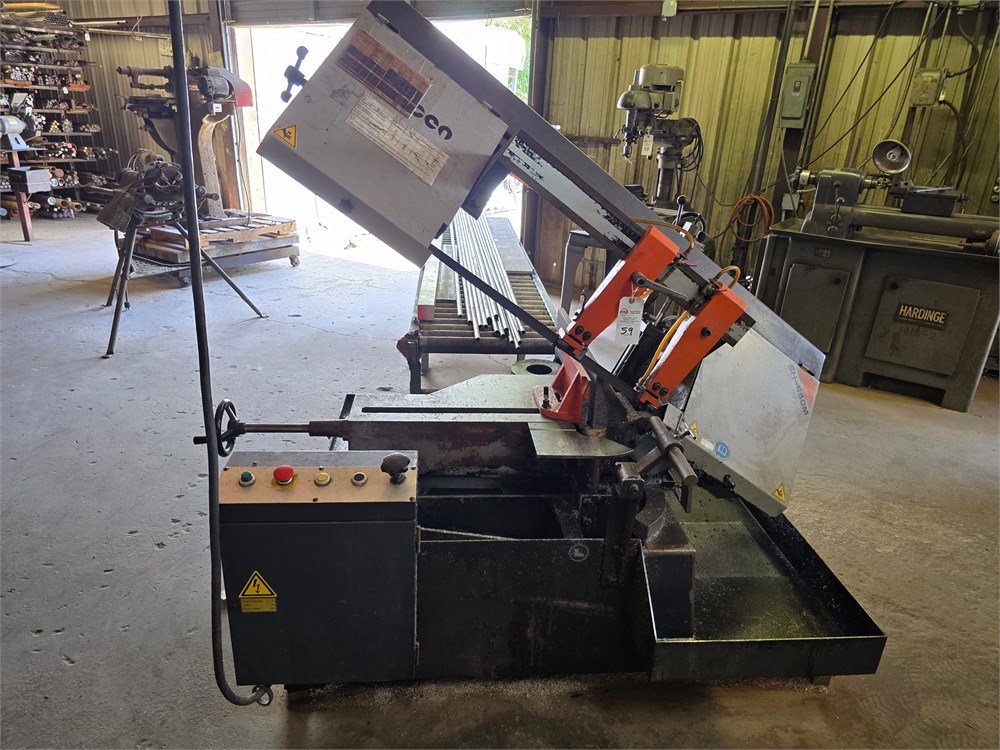

2019 - Cosen #SH-460M Metal Cutting Horizontal Mitering Band Saw

Cutting Capacity (0°)
• Round: 10 in (254 mm)
• Rectangular: 9 in × 18.1 in (230 × 460 mm)

Cutting Capacity (Miter / Angled)
• At –45°: round up to ~9 in, rectangular ~9 in × 9 in
• At –60°: round ~4.3 in, rectangular ~9 in × 4.3 in

Blade Speed
• Four-step: 75, 121, 190, 305 FPM (24, 37, 58, 93 m/min)
• Optional stepless (variable) speed drive

Blade Size
• Length: 138 in (11 ft 6 in)
• Width: 1 in (25.4 mm)
• Thickness: 0.035 in (0.89 mm)

Motors
• Saw blade motor: 2 HP (1.5 kW)
• Hydraulic pump: 1/4 HP (0.18 kW)
• Coolant pump: 1/8 HP (0.09 kW)

Workbed Height
• 25.2 in (640 mm)

Machine Dimensions (L × W × H)
• 69 in × 43.3 in × 41.4 in (1,752 × 1,100 × 1,050 mm)

Weight
• Net: 1,357 lb (615 kg)
• Gross / Shipping: 1,530 lb (694 kg)

Power Supply / Electrical
• 230 V, 3-Phase, 60 Hz (optional 460 V, 3-Phase)
