2018 - Haas ST-20Y CNC Lathe

× Bidding has ended on this item.
Ended
LIVE WEBCAST
Prev Lot
  Lot # 83
Next Lot
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Logistics
A loading fee of $900 will be automatically added the winning invoice. Buyer responsible for all transportation costs. Removal will take place 09/15-09/19

  • Lot # 83
  • System ID # 4080720
  • Item # 4080721
Description

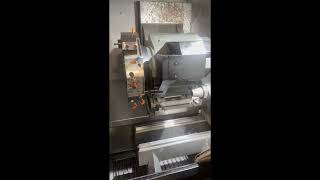

2018 - Haas ST-20Y CNC Lathe



Description

X-Axis Travel....8"
Y-Axis Travel...+/- 2"
Z-Axis Travel....22"
Chuck Size....8"
Max. Part Swing....21"
Max. Cutting Diameter....11.75"
Max. Cutting Length....22.5"
Spindle Bore....3.5"
Bar Capacity....2.5"
Turret Positions....12
Max. Spindle Motor HP....20HP
Max. Spindle RPM....4,000 RPM
C-Axis Max Rating....5 HP
C-Axis Max. RPM....60 RPM



Equipped With

Live Tooling,
C-Axis,
300 PSI TSC,
