Bridgeport Series I EZ-Trak Manual Milling Machine

× Bidding has ended on this item.
Active
TIMED AUCTION

5" Quill Travel, 6″ – 23″ Spindle to Column, 6" Boring Capacity

Prev Lot
  Lot # 29
Next Lot
Listing Image
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
12 Days, 08:53:26
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Florida

  • Lot # 29
  • System ID # 3952839
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3952840
Description

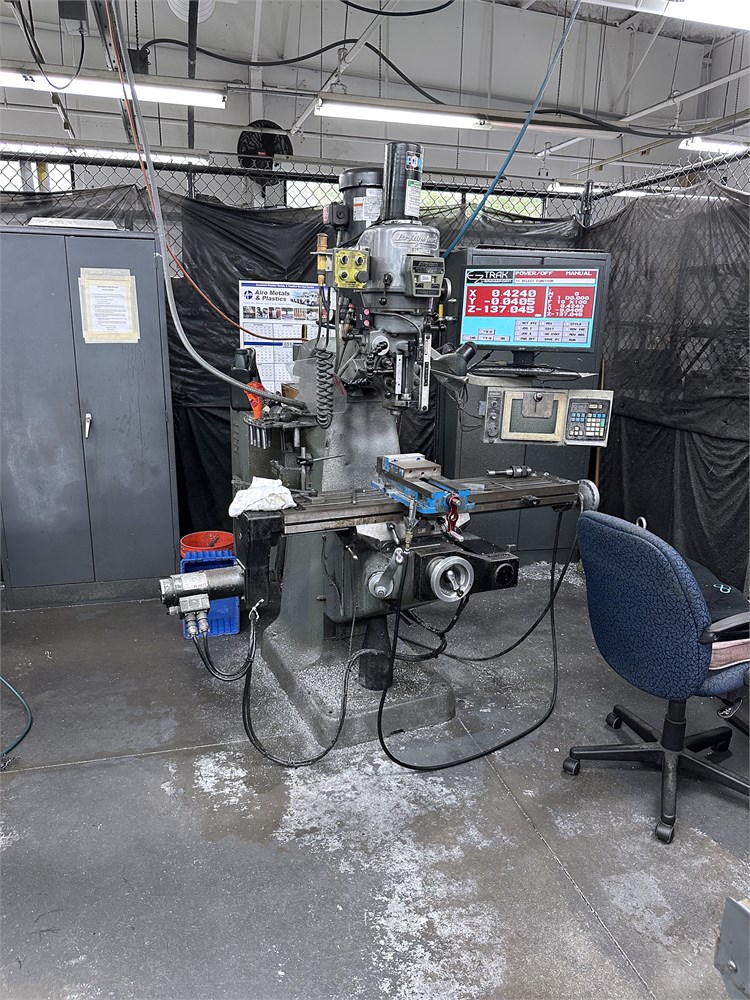

Bridgeport Series I EZ-Trak Manual Milling Machine (1994)



Description

Table Travel (X-axis): 30″
Saddle Travel (Y-axis): 12″
Spindle Travel (Z-axis): 5″
Table Size: 48″ x 9″
T-Slots: 3 on 2.5″ centers
T-Slot Size: .00625″
Height Above Floor (max): 47.4″
Maximum Vertical Load Uniform Distribution: 300 lbs

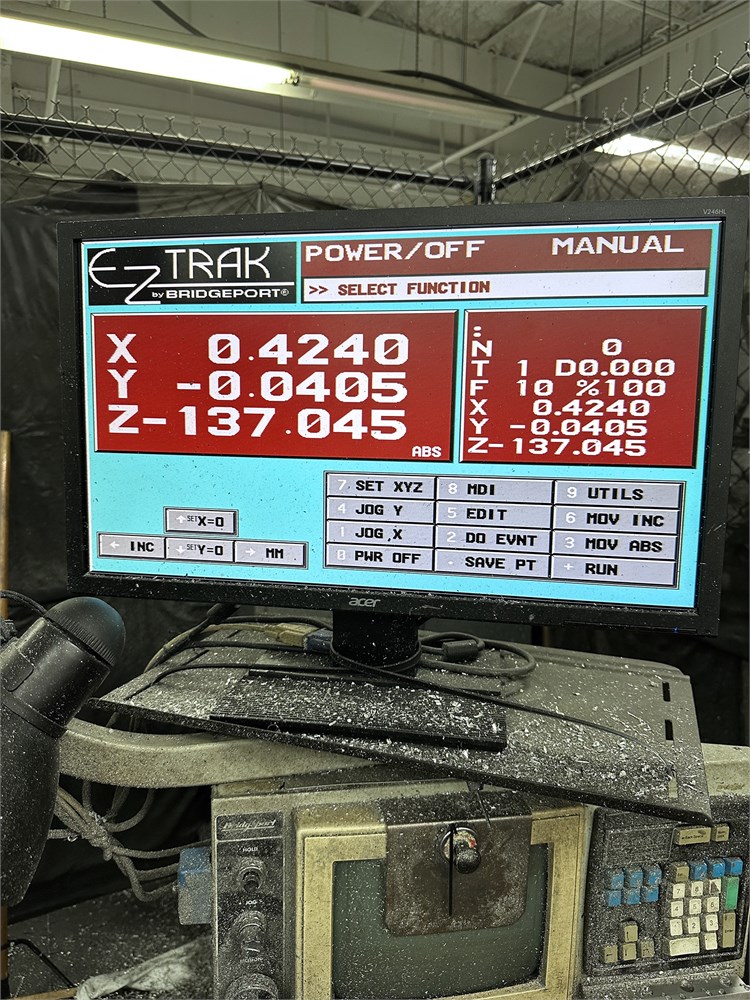

POSITIONING:
Auto (X,Y): 100 ipm
Manual (X,Y): 100 ipm
Feedrate Range (X,Y): 0.1-100 ipm
Minimum Increment: 0.0001 in.

SPINDLE:
A.C. Spindle Motor Rating: 2 HP
Power Rating (Duty Cycle): 3 HP

POWER:
Input Power: 208/230/460 Volts
3 Phase 50/60 Cycles
Power Capacity: 4kVa

SPACE AND WEIGHT:
Floor Space: 98″ x 64″ (Door Open: 98″ x 87″)
Machine Height: 82″
Working Surface: 48″ x 9″
Approx Weight: 2,200 lbs

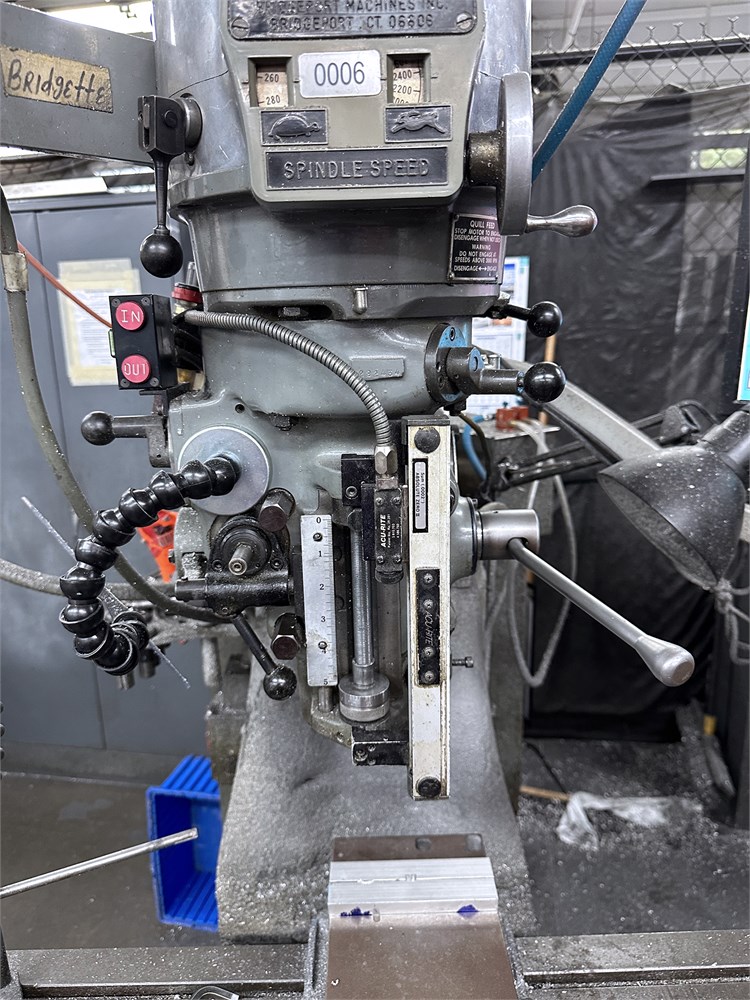

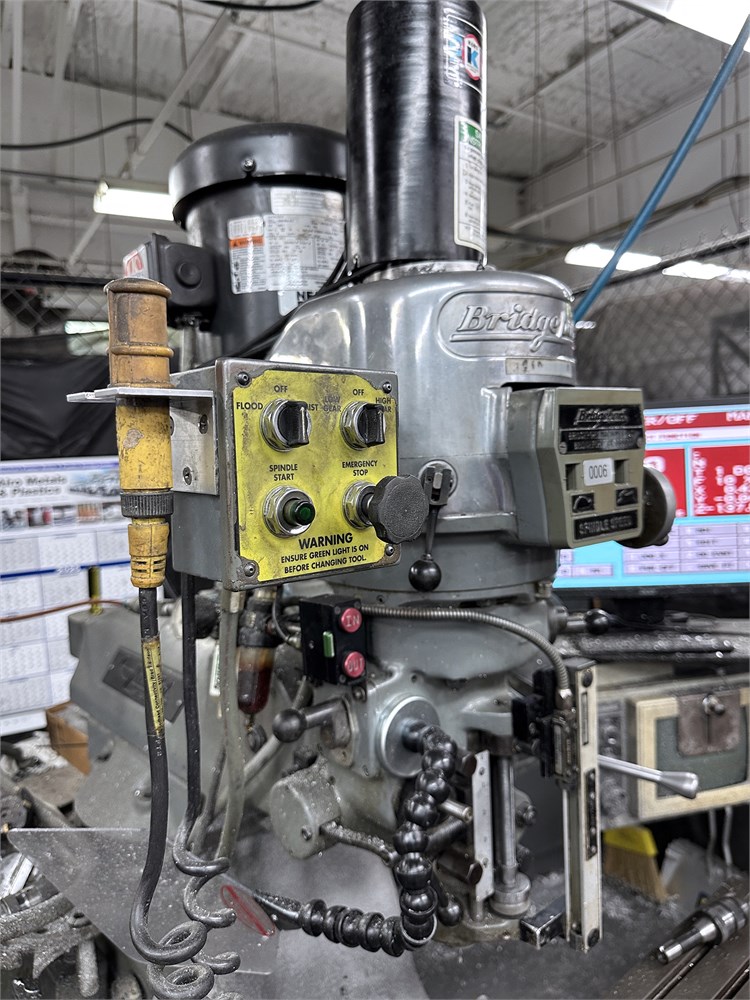

MILLING HEAD SPECIFICATIONS:
Model: 2J
Power: 2 HP
Motor RPM: 1,800 RPM
Speed Ranges- RPM: Low (60-500), High (500-4200)
Quill Travel: 5″
Quill Diameter: 3.375″
Spindle Tapers: R-8 #30 Q.C.
Spindle Diameter: 1.875″
Drilling Capacity (Manual): 0.87″
Drilling Capacity (Power): 0.37″
Boring Capacity: 6″
Milling Capacity: 2 cu. in./min.
Spindle to Column: 6″ – 23″
