Doosan DNM 4500 Vertical Machining Center (2019)

× Bidding has ended on this item.
Ended
TIMED AUCTION

4,842 Cutting Hours, CAT 40 Big Plus, Renishaw Probe, 30 ATC

Prev Lot
  Lot # 14
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
Washington
Logistics
A LODING FEE OF $2,500 WILL BE AUTOMATICALLY ADDED THE WINNING INVOICE. BUYER RESPONSIBLE FOR ALL TRANSPORTATION COSTS.
Loading Cost
2,500

  • Lot # 14
  • System ID # 3946192
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3946193
Description

Doosan DNM 4500 Vertical Machining Center (2019)



Description

Control: Fanuc 0i-M

CAPACITY:

X axis travel 31.49"

Y axis travel 17.71"

Z axis travel 20.1"

Table loading area 39.37" x 17.72"

Allowable table load 1,320 lbs

Table T-slot spacing x width (3) - 125mm x 18H8 (3) - (4.92" x .71")

SPINDLE:

Spindle nose to table top 15.9" to 26"

Big Plus Spindle system CAT 40 Big Plus

Spindle speed 8,000 rpm

AC Spindle Motor (S3 25%) 15 / 20 hp

Spindle Torque (S3 15%) 211 ft-lbs

Spindle Acceleration \ Deceleration time 0 - 8k (3.53 sec) \ 8k - 0 (2.52 sec)



Equipped With

30 ATC
Thru Spindle Coolant - 230 PSI
Renishaw probe
Tool setter
LNS MH250 filtration conveyor

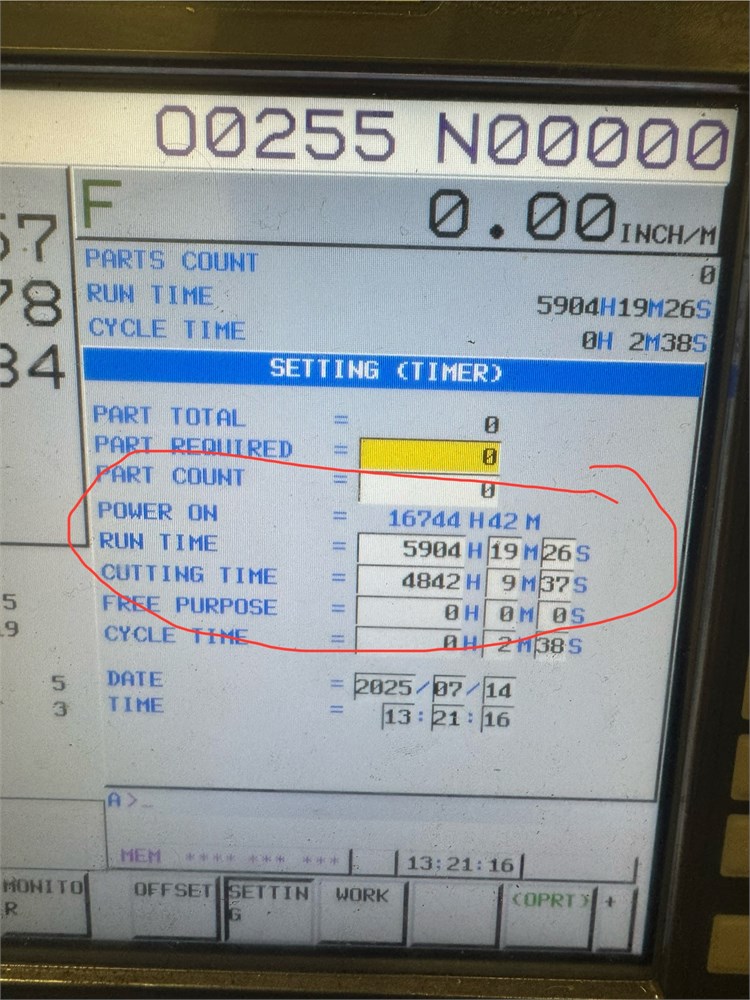

4,842 Cutting Hours
