Doosan DNM 4500 Vertical Machining Center (2017)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 14
Next Lot
Listing Image
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
19 Days, 14:43:18
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Washington

  • Lot # 14
  • System ID # 3946192
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3946193
Description

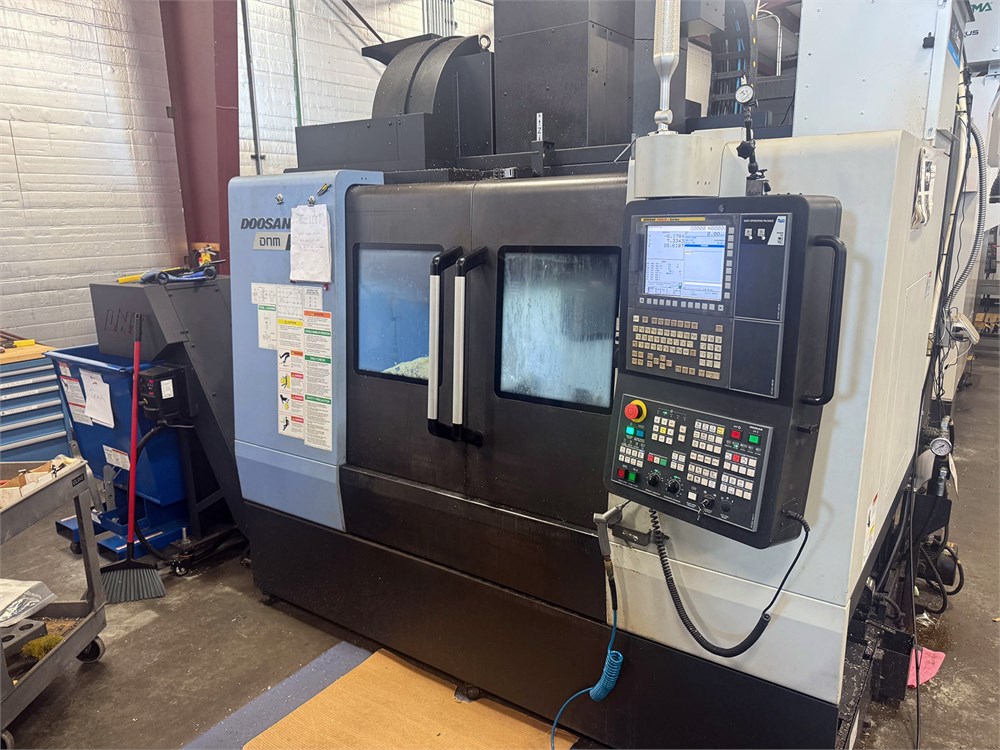

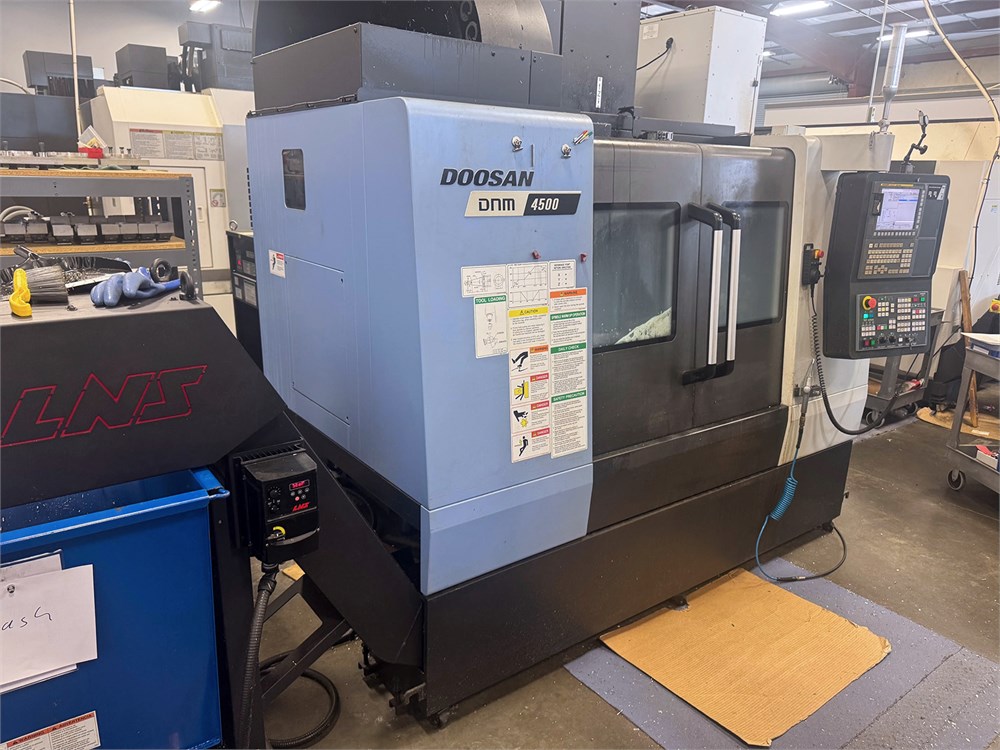

Doosan DNM 4500 Vertical Machining Center (2017)



Description

CAPACITY:

X axis travel 800 mm (31.49")

Y axis travel 450 mm (17.71")

Z axis travel 510 mm (20.1")

Table loading area 1,000 mm x 450 mm (39.37" x 17.72")

Allowable table load 600 kg (1,320 lbs)

Table T-slot spacing x width (3) - 125mm x 18H8 (3) - (4.92" x .71")

SPINDLE:

Spindle nose to table top 150 mm to 660 mm (5.9" to 26")

Big Plus Spindle system CAT 40 Big Plus

Spindle speed 8,000 rpm

AC Spindle Motor (S3 25%) 11 / 15 kW (15 / 20 hp)

Spindle Torque (S3 15%) 286 nm (211 ft-lbs)

Spindle Acceleration \ Deceleration time 0 - 8k (3.53 sec) \ 8k - 0 (2.52 sec)



Equipped With

30 ATC
Thru Spindle Coolant - 230 PSI
8K high torque spindle

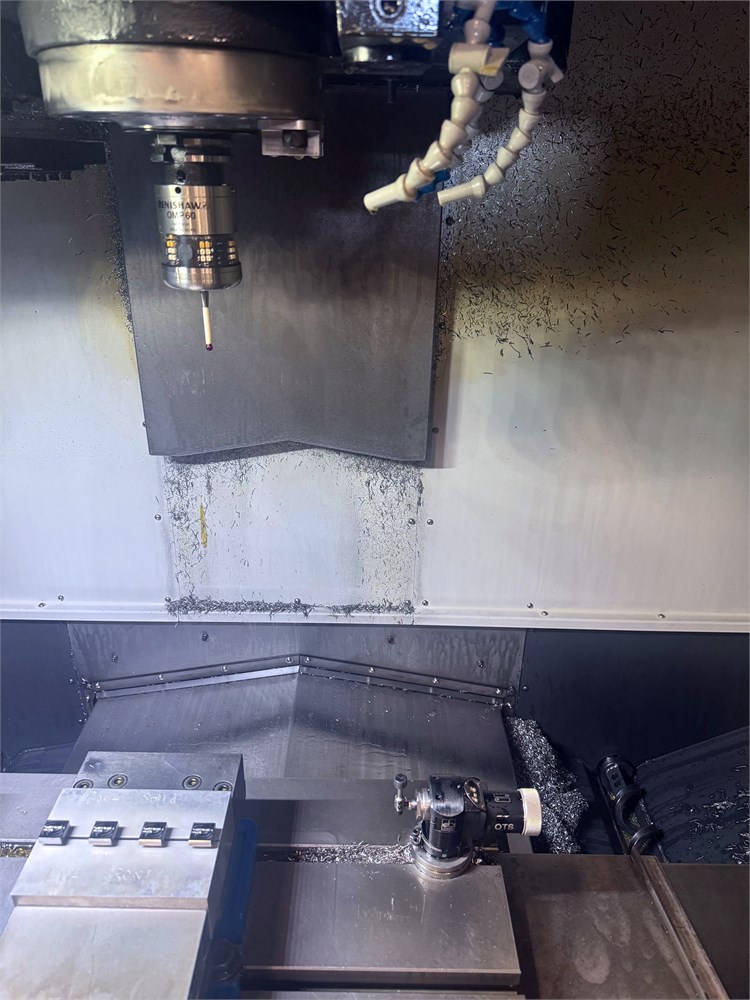

Renishaw probe
Tool setter
LNS MH250 filtration conveyor

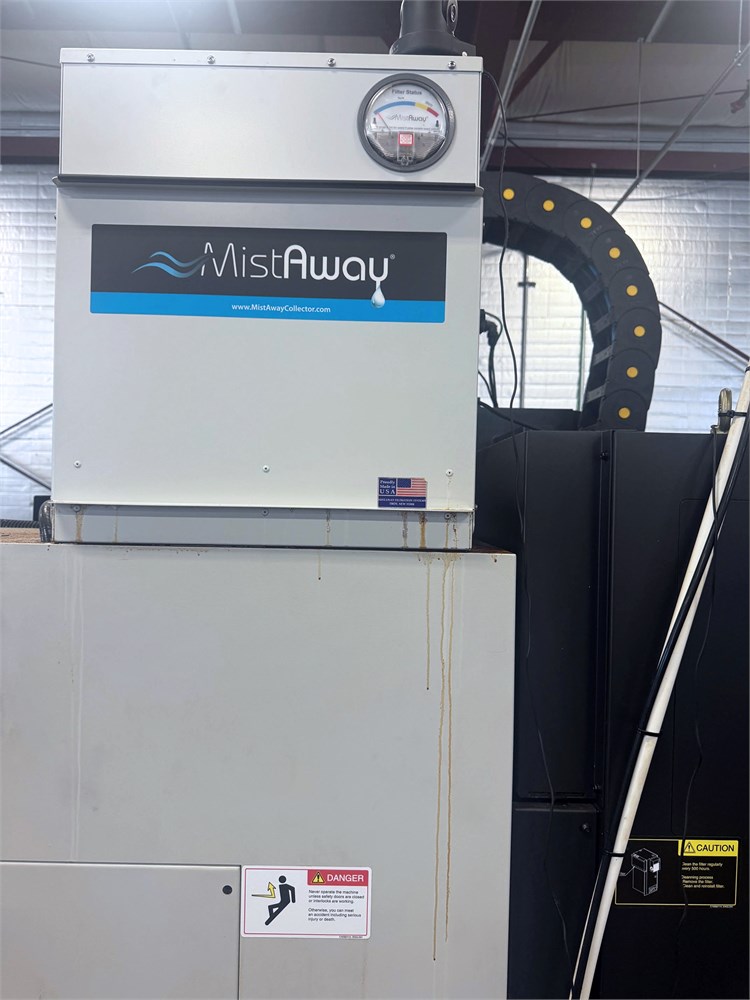

mistaway mist collector
