Heald 273 A ID Grinder

× Bidding has ended on this item.
Ended
TIMED AUCTION

24.5” Swing, 20" Max Travel

Prev Lot
  Lot # 12
Next Lot
Listing Image
  • Sold Auctioneer has chosen not to publish the price of this lot
Details
Location
California
Logistics
BUYER RESPONSIBLE FOR LOADING AND FREIGHT
Loading Cost
0

  • Lot # 12
  • System ID # 3945459
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3945460
Description

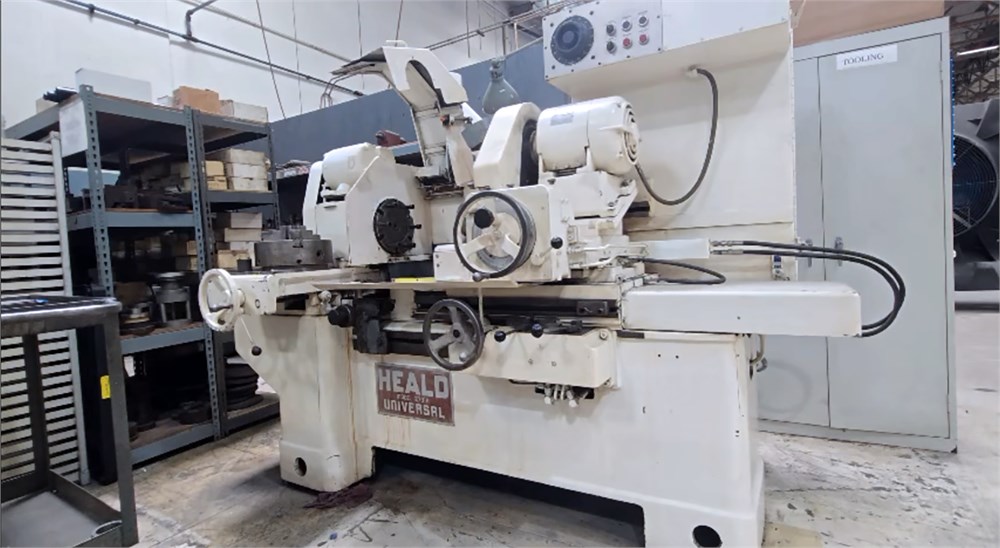

Heald 273 A ID Grinder



Description

**Same Location as Lot 11 and 13**

Swing over Table: 24.5”
Angular adjustment of Workhead: 90 Degrees
Workhead Cross Slide Travel: 11 1/2″
Table Travel: 20″ Max.
Grinding Stroke – Maximum: 16″
Wheelhead Cross Slide Travel: 1 1/2″
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM
Wheelhead Motor: 5 HP
Workhead Speeds – Reversible & Variable: 0 – 500 RPM
Electrical Requirements: 480V/3PH/60Hz
Approx Dimensions: 96″(L-R) x 64″(F-B) x 75″(H)
Est. Weight: 7,000 lbs



Equipped With

3 Jaw Chuck,
Integrated Coolant System,
Integrated Hydraulic System,
