Nisshinbo MAP-1000 II turret punch

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 10
Next Lot
Listing Image
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
20 Days, 22:52:13
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
North Carolina

  • Lot # 10
  • System ID # 3944050
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3944051
Description

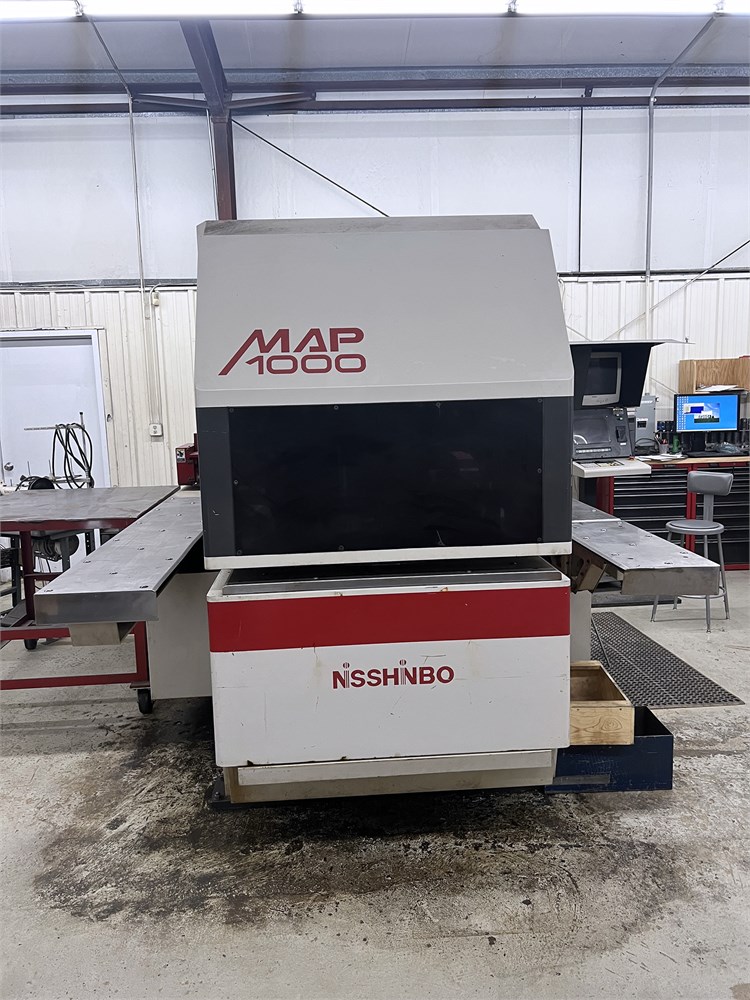

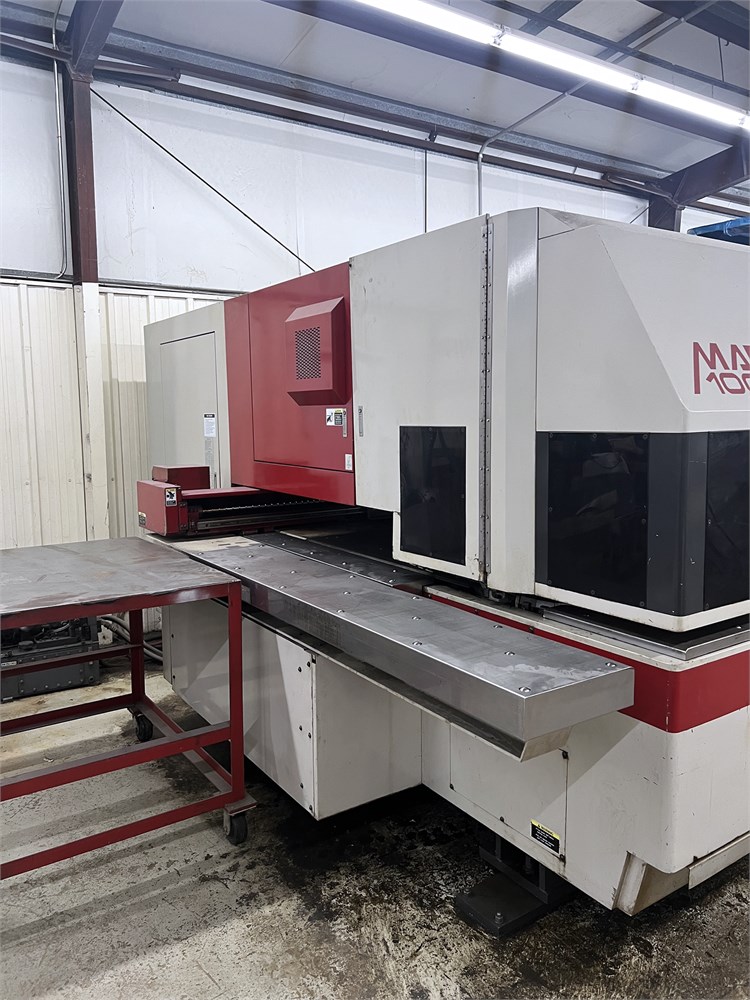

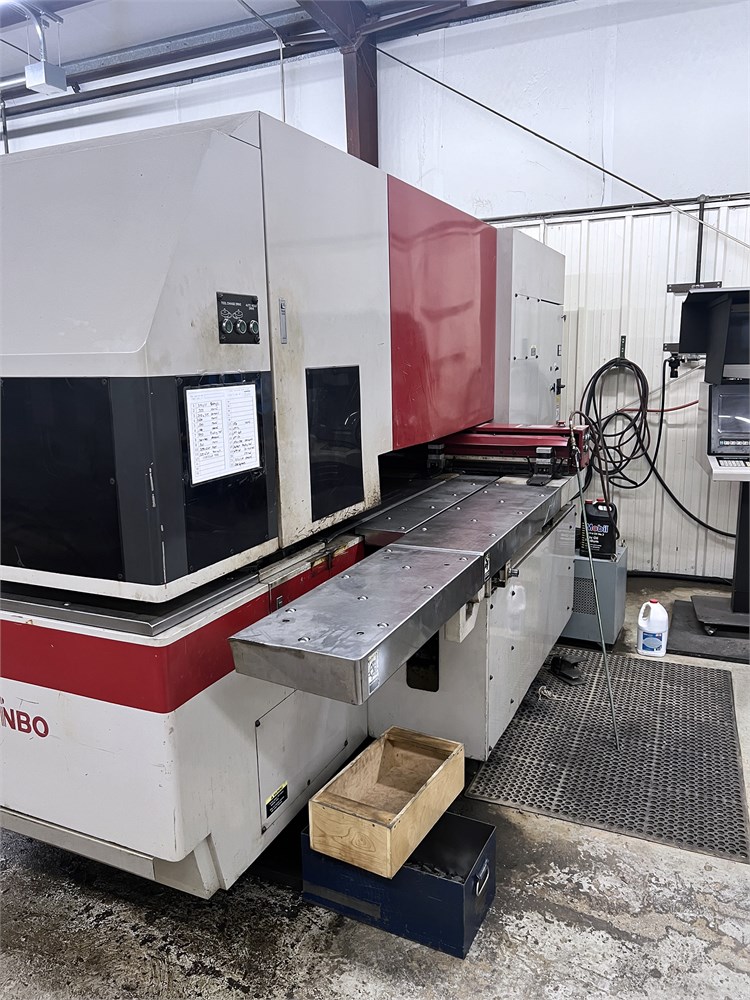

Nisshinbo MAP-1000 II turret punch (1997)



Description



Max. material thickness: .250"
Hole capacity: 3.500" Dia. in 14 Ga.
1.125" Dia. in .250"
Punching force: 22 metric tons

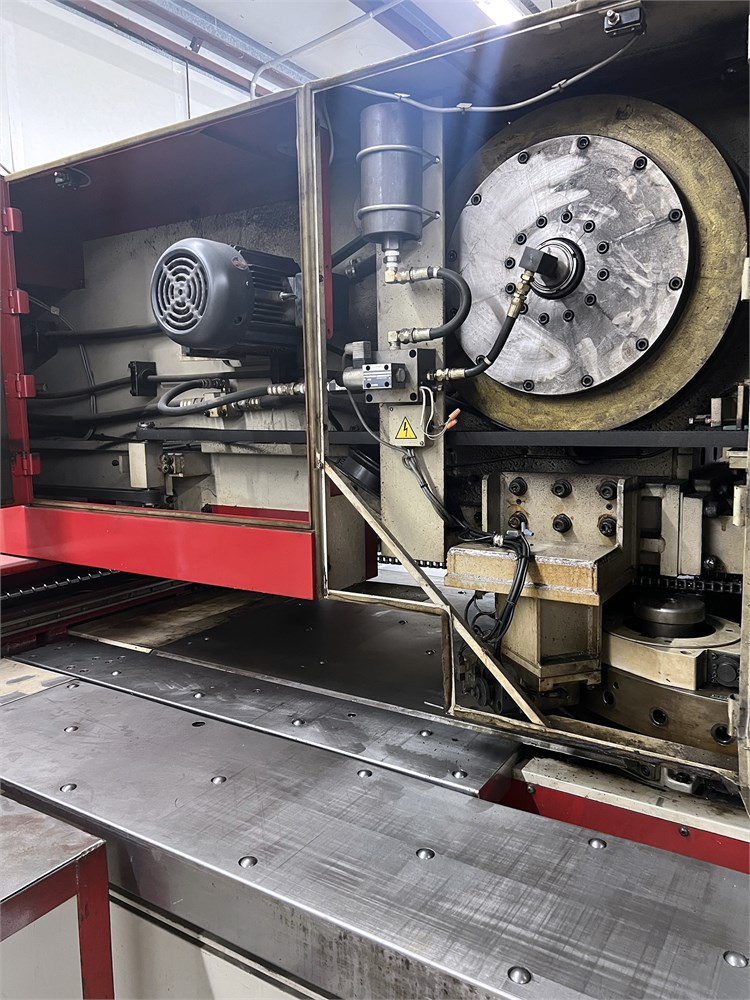

Mechanical hydraulic wet clutch brake: 24 imperial tons
ACCURACY
X/Y location: +-.004"
Auto-index: +-.05 degrees

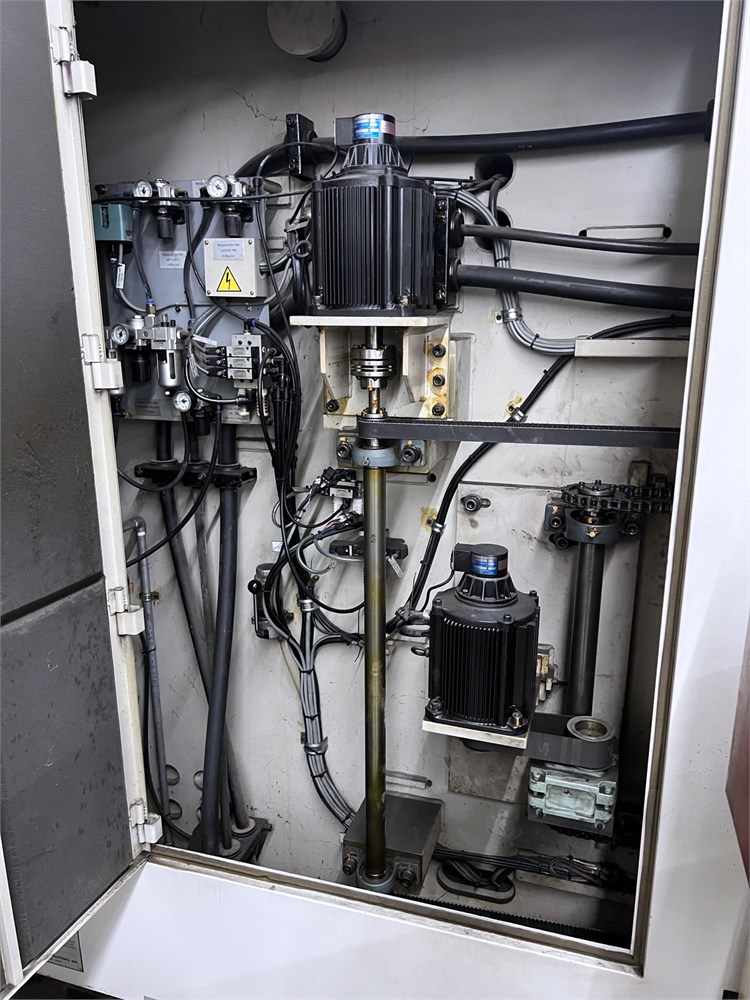

Axis control simultaneous 4 axis: X, Y, T, C AC servo
MAX WORKPIECE SIZE
Standard: 49.6" x 39.375"
with repositioning: 99.2" x 39.375"
with repositioning & sheet rotation: 99.2" x 78.75"

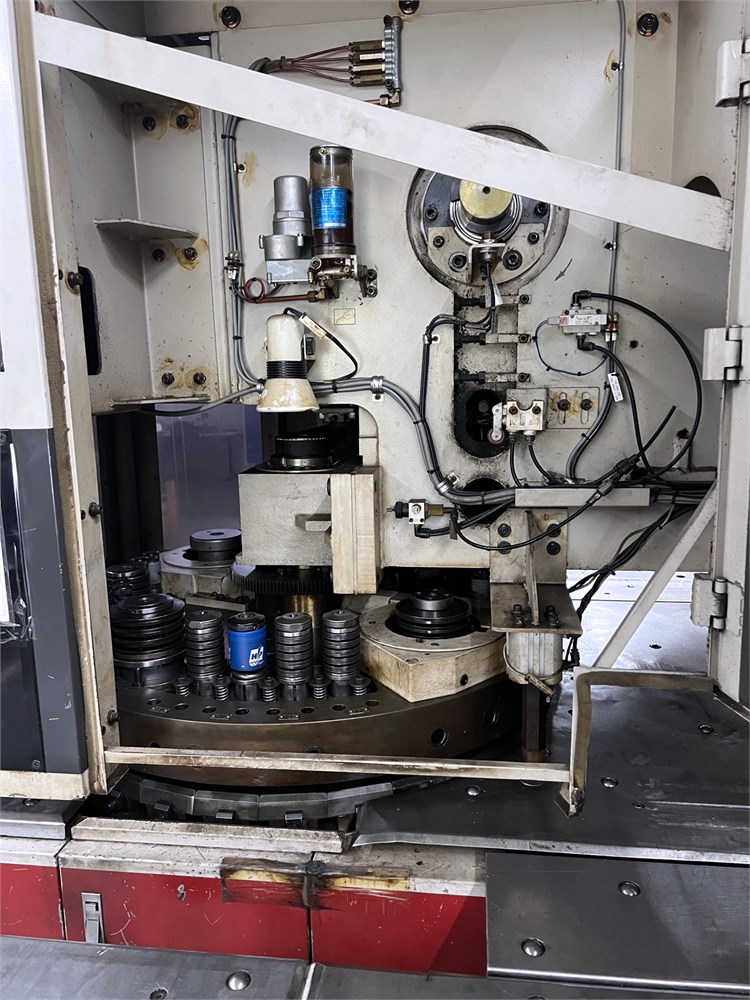

Turret drive: Bi-Directional
FEED CLEARANCE
Thick: .787"
Thin: .866"
PRODUCTION RATES
1" centers: 220 hpm
Nibble: 350 hpm
Maximum axis speed: 2000 ipm
Auto-index speed: 30 rpm, Bi-Directional
Electrical: 230/460/60, 12 KVA
Air Requirements: 3.5 SCFM/ .5 CFM at 90 psi

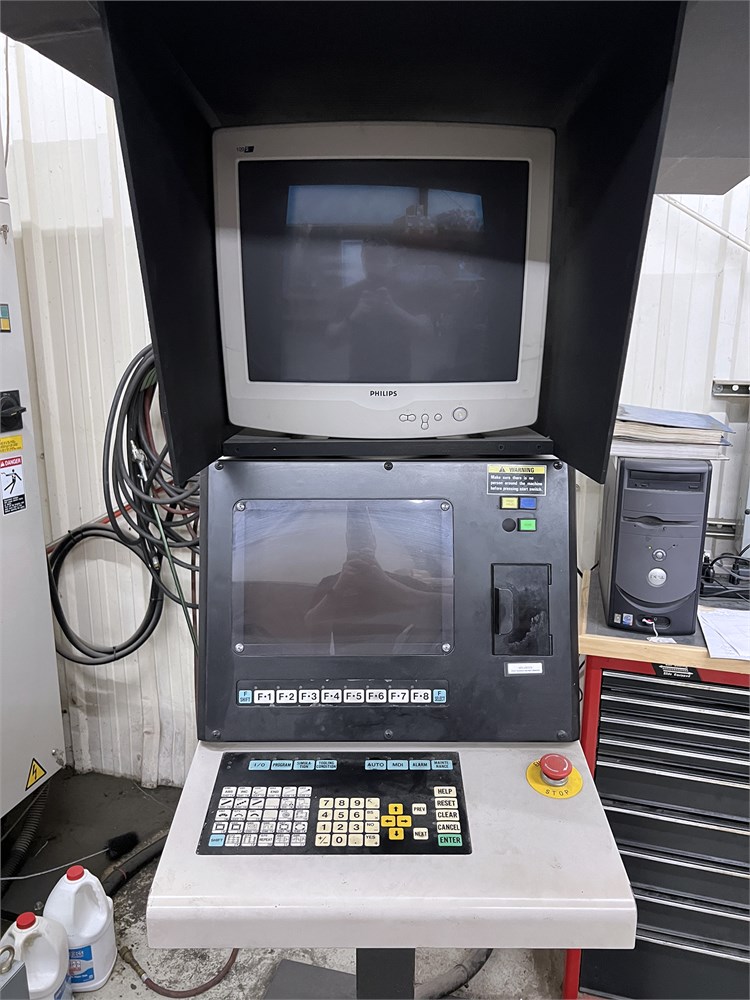

Control Type: NISSHINBO PAL-500T
Interface: RS-232C standard
Multi-tasking: Standard
Graphic programming: Standard 14" color monitor
Program storage: Floppy disk, 100 programs
Memory: 12 programs with 2000 blocks each


DIMENSIONS
L x W x H: 158.3" x 90.6" x 86.6"
Weight: 24,000 lbs



Equipped With

comes with approximately 400 GPT custom tools, mostly 4-way radius tools
Includes Kyoshin Denki Kogyo Model DT-3 Transformer
