Mitsubishi ML3015LVP Plus II CO2 Laser Cutting (2009)

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 3
Next Lot
Listing Image
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
12 Days, 11:52:04
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Michigan

  • Lot # 3
  • System ID # 3904911
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3904912
Description

Mitsubishi ML3015LVP Plus II CO2 Laser Cutting (2009)



Description


X-AXIS STROKE - 122.04”
Y-AXIS STROKE - 61.02”
Z-AXIS STROKE - 4.72”
MAX POWER 4500 WATTS
MAX SHEET SIZE 60.04" X 120.08”
MOTION SYSTEM PRECISION RACK & PINION, DIRECT DRIVE
RAPID TRAVEL SPEEDS (SIMULTANEOUS) 4,730 IPM
SINGLE AXIS 3345 IPM
MAX FEEDRATE 1,180 IPM
TRAVEL DRIVE METHOD X, Y, Z SIM. 3 AXIS CONTROL
DRIVE MOTOR TYPE INTELLIGENT AC SERVO
MAX WORKPIECE WEIGHT 2,050 LBS
Pop-Up Ball Transfer Table ($20,000 Option)



Equipped With

Chiller
Dust Collector

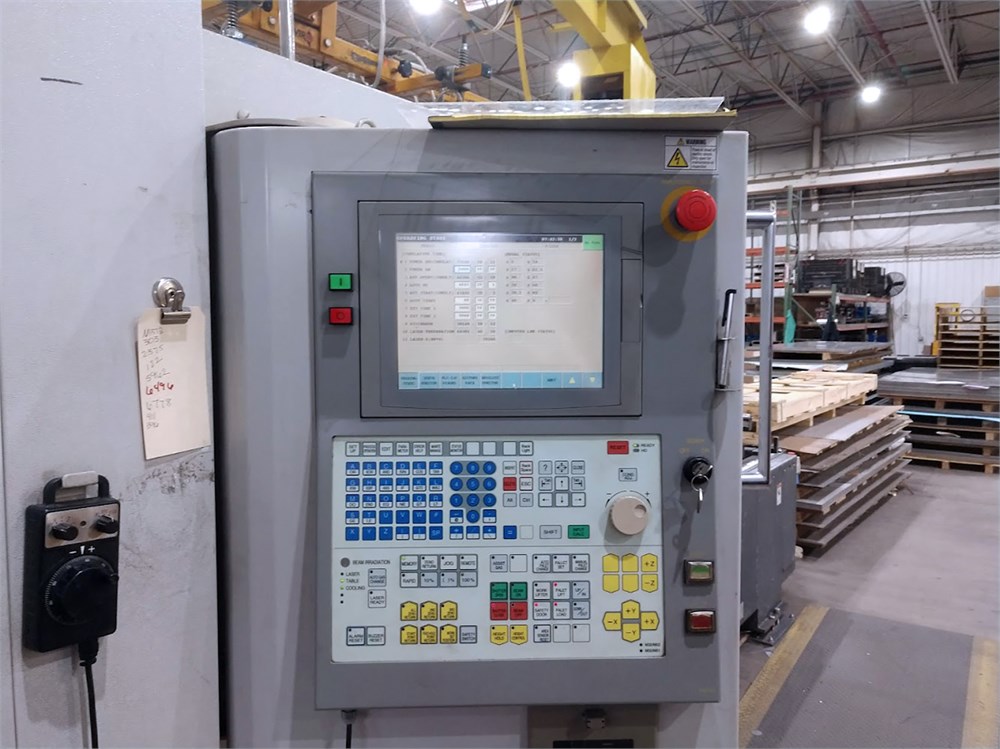

Mitsubishi CNC Control
Non-Contact Cutting Head
Dual Pallet Shuttle Table
Precision Rack & Pinion Drives
Pop-Up Ball Transfer Table
