Trak DPM RX7 Bed Mill

× Bidding has ended on this item.
Active
TIMED AUCTION
Prev Lot
  Lot # 2
Next Lot
Listing Image
  • Starting Bid $100.00 ( ) No Reserve
  • 0 Bid(s)
Current Price
$100.00 No Reserve
Your Maximum Bid Is $0.00
Remaining Time
11 Days, 17:31:16
Machine Tool Bids will bid incrementally for you up to your maximum bid. Your maximum bid is kept a secret from other users.
Your bid is a contract between you and the listing creator. If you have the highest bid you will enter into a legally binding purchase with 18% buyer premium contract.
Details
Location
Illinois

  • Lot # 2
  • System ID # 3877091
  • End Date Central Standard Time
  • Start Date Central Standard Time
  • Item # 3877092
Description

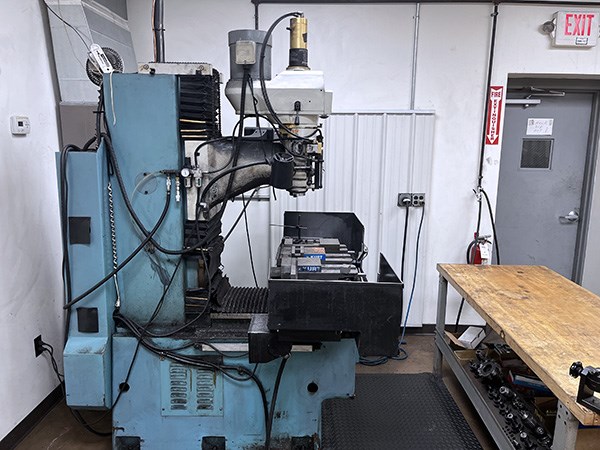

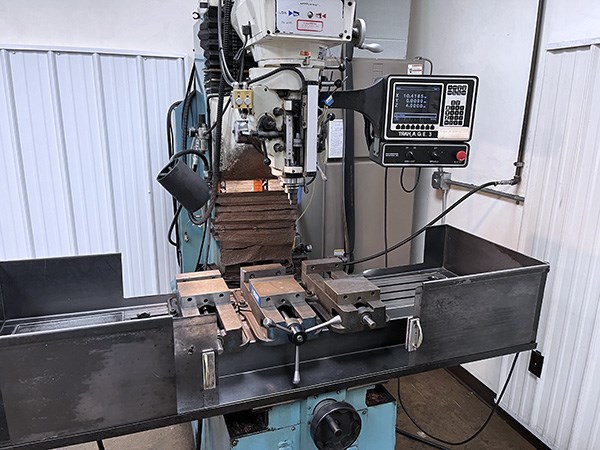

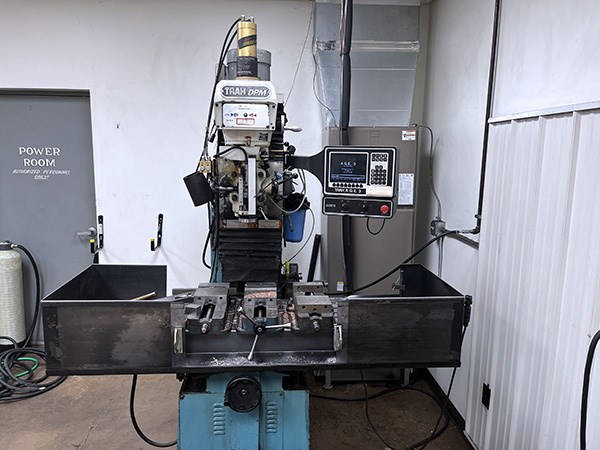

Trak DPM RX7 Bed Mill (1999)



Description


Make: Trak

Model: DPM RX7

T-Slots: 63mm x 2.5"

X Travel: 31"

Y Travel: 17"

Z Travel: 23.5"

Spindle Head

Quill Diameter: 100mm

Spindle Taper: #40 NST, NMTB

Speed Range: 70-4200 RPM

Spindle Nose to Table (max part height): 0-25"

Spindle center to column face: 17.3"

Quill Feeds per revolution of Spindle: 0.002, 0.004, 0.006 in/revolution

Head Swiveling (right to left): 90 degrees

Spindle Motor

Power: 3 Hp

Voltage: 220V or 440V

Phase/Cycle: 3 Phase/60 Hz

Current: 8.6/4.3 amp

Max weight of workpiece: 1320 lbs

Maximum Machining Capacities

Drilling Mild Steel: 1.5" diameter

Tapping: 1.25"

Milling: 3 cubic in/minute

Boring: 4.75"

Approx shipping weight 4500 lbs

Pallet size 6' x 6'





Equipped With

DRO

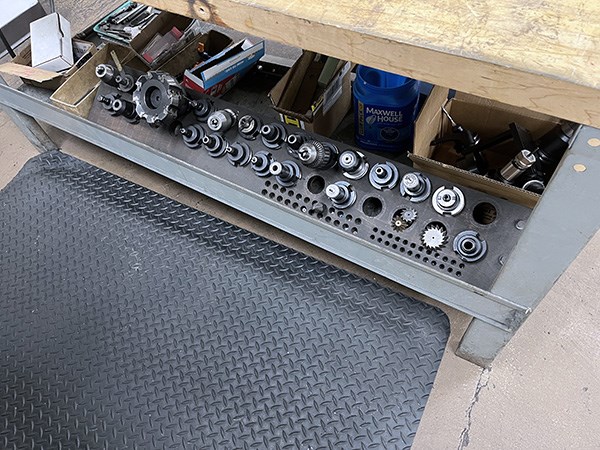

Box Tooling

Table Vices
